Audio System - Popping Noise From Speakers
SI B 65 09 03Sound System, Cruise, Alarms, Monitors
August 2003
Service Engineering
This Service Information bulletin supersedes S.I. B65 09 03 dated March 2003.
[NEW] designates changes to this revision
SUBJECT
Popping Noise from the Loudspeakers
MODEL
[NEW] E85 (Z4) with DSP amplifier, vehicles produced from 10/2002 to 05/2003
SITUATION
Popping noise from the loudspeakers when turning the radio on.
[NEW] CAUSE
Software error in the DSP amplifier.
CORRECTION
On a customer complaint basis only, replace the DSP amplifier with SW # 09 or later.
Refer to Repair Instruction RA 65 12 072, Removing and installing (replacing) the DSP amplifier (Top hi-fi sound system).
To open the Repair Instruction, go into TIS to Repair Information, select "Z'E85 " and a model. Then select "Search for document title" and enter "amplifier". NOTE: (The path "Search for document numbers" may not be working).

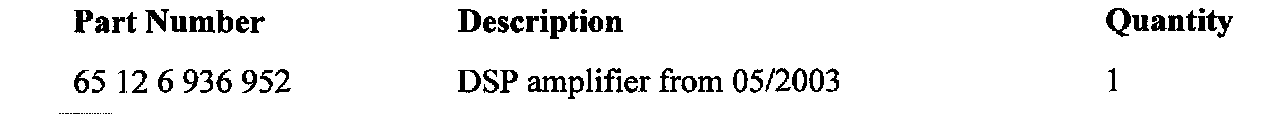

PARTS INFORMATION

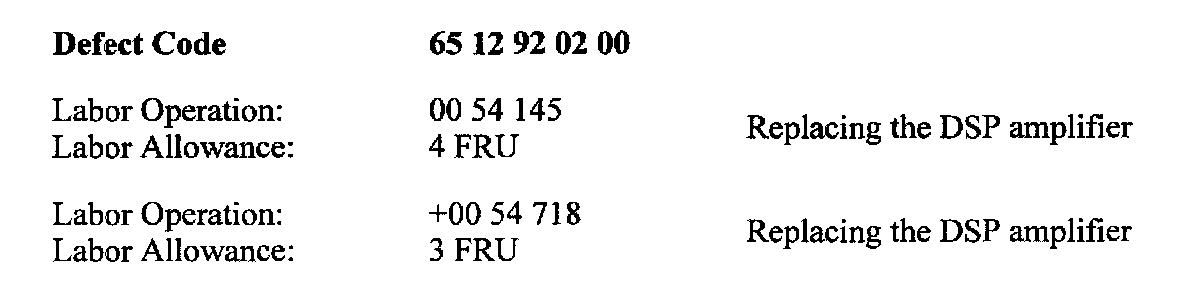

WARRANTY INFORMATION
Covered under the terms of the BMW New Vehicle Limited Warranty.
Note:
The following explanations will spell out the correct use of the work times.
Main Work:
Use this labor operation number when the only repair performed is the listed warranty repair.
OR
+Associated Work:
Use this labor operation number when other repairs or services are performed along with the listed warranty repair.
Under no circumstances should both labor operation numbers be claimed.
Attempts to claim both times will result in an unnecessary delay in claim processing and payment.
