Replacing Rear Window Wiper Motor

Removing And Installing/Replacing Rear Window Wiper Motor

Remove panel for rear lid upper section at bottom.
Remove wiper arm for rear wiper.







NOTE:

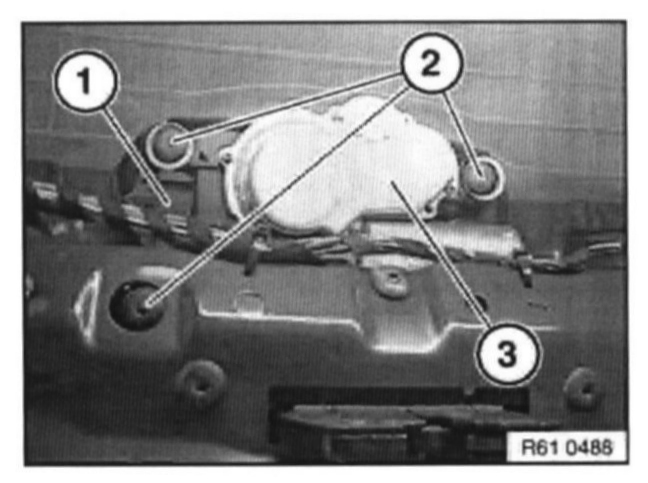

Secure rear window wiper motor against falling out. Disconnect plug connection (1) and release screws (2).
Remove rear window wiper motor (3).


Installation Note:
Insert screws (2) and tighten until hand-tight.
Center rear window wiper motor (3) and tighten down screws (2).
Observe tightening torque, Wiper bracket to rear lid 10 Nm.







Installation Note:

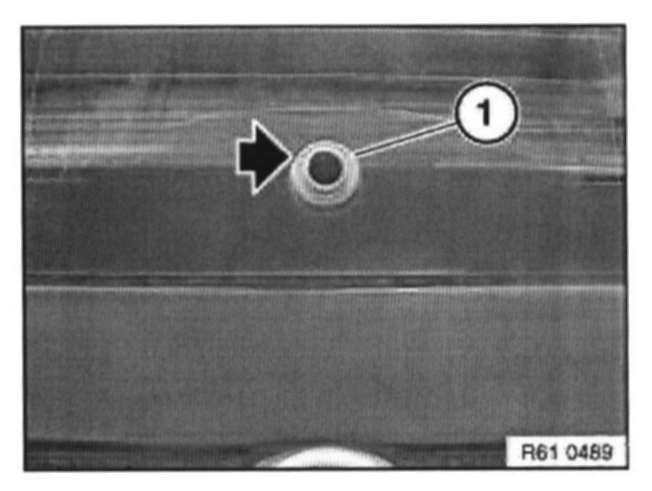

Replace rubber grommet (1).
Note installation position of rubber grommet (1) (marking must be in horizontal position).
