Mounting Bracket, Windshield Wiper System Completely W/ Motor

Removing And Installing Mounting Bracket For Windshield Wiper System Completely With Motor

Remove cover for cowl.







Pull out air funnel (1) on microfilter housing.







Remove screws (1) and (2).

Installation Note:
If necessary, replace damping ring upper/lower section.
Tighten screws (1) and (2) in specified sequence.


Release nut (3) with special tool 61 6 250.

Installation Note:
If necessary, replace rubber buffer.
Fit nut (3) loosely.

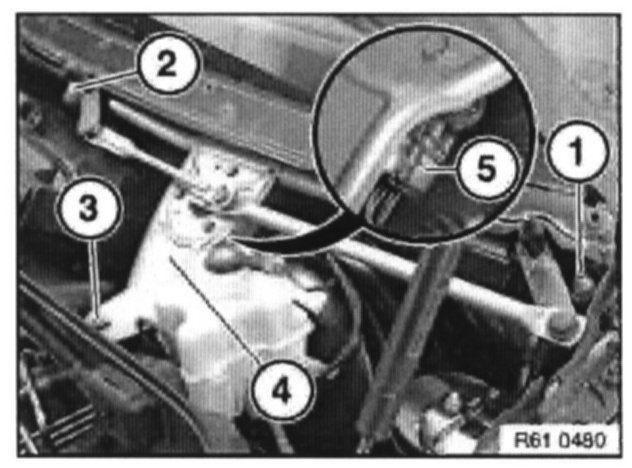

Remove bracket for windshield wiper system (4) and disconnect plug connection (5).

Installation Note:
Before installing wiper arms, allow wiper motor to return to its rest position.
To ensure the wiper system works properly, check and correct the contact angle of the wiper arms.

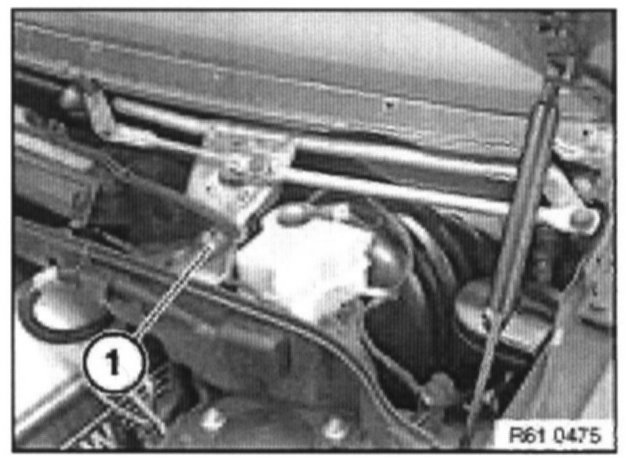

In event of deviations from specified value, correct contact angle using adjusting screw (1).
Check contact angle of wiper arms again.

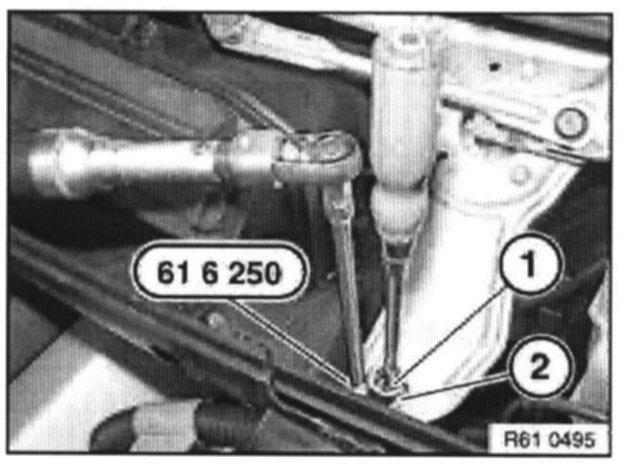

Grip adjusting screw (1) and tighten nut (2) with special tool 61 6 250.

Secure nut (2) with locking varnish.
