Replacing Wiper Arm For Rear Window Wiper

Replacing Wiper Arm For Rear Window Wiper

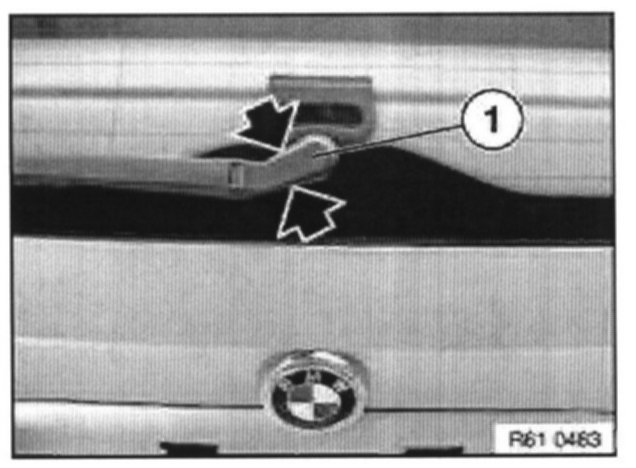

Lever out cap (1) at side and remove.

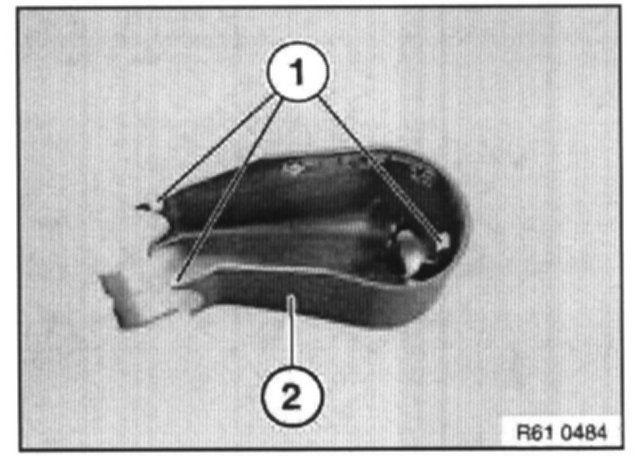

Installation Note: Catches (1) of cap (2) must not be damaged.

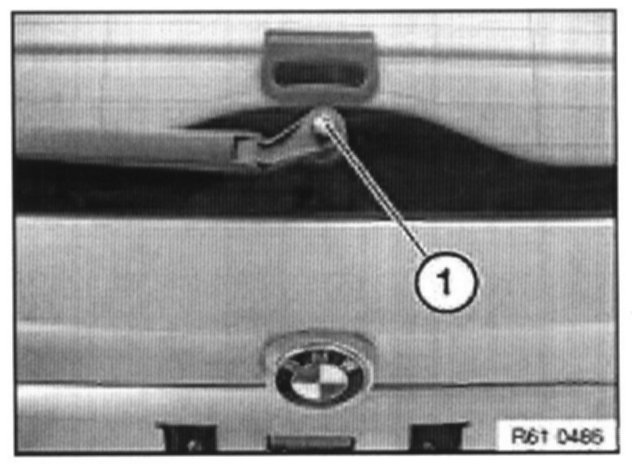

Unscrew nut (1).

Installation Note: Observe tightening torque, Wiper arm to wiper pivot bearing 13.5 Nm.

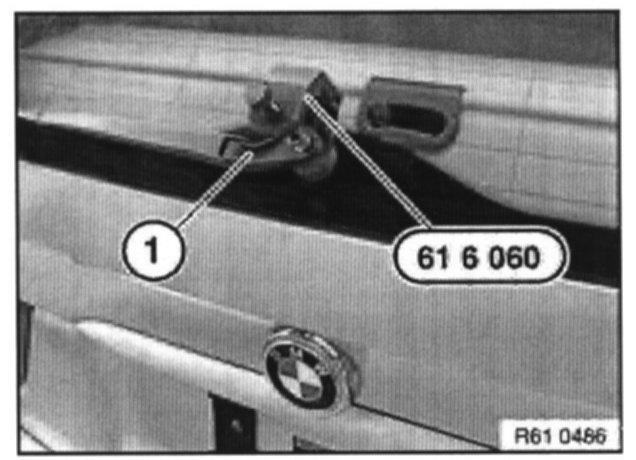

Detach wiper arm (1) with special tool 61 6 060 and remove.







Installation Note:
Wiper motor must be in end position.

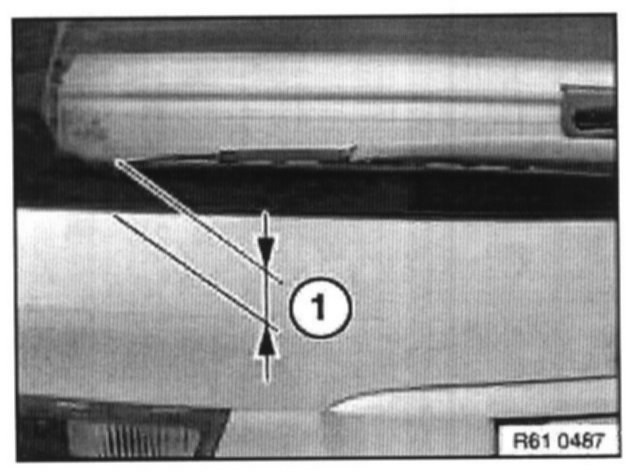

Adjust distance (1) between wiper arm and rear window edge.

1 32.5 ± 2 mm
