Removing and Installing/ Replacing Trim For Preselector Knob

Removing And Installing/replacing Trim For Preselector Knob







NOTE:
Apply handbrake and move preselector knob (1) max. to rear (risk of damage to interior mirror).

Do not twist preselector knob (1) when removing; otherwise turning lock in knob (1) will be sheared off.

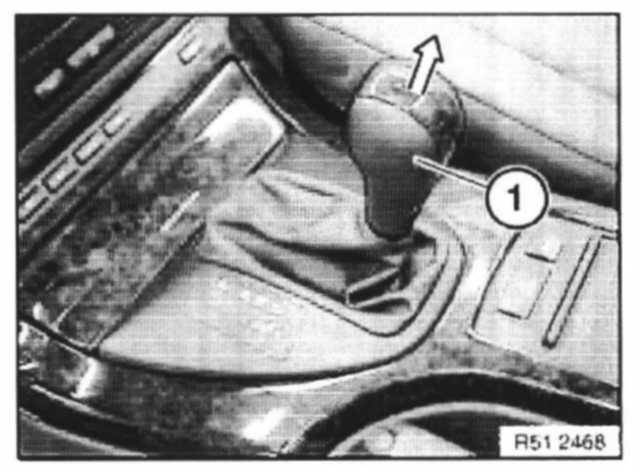

Pull off preselector knob (1) with a forceful jerk.


Installation:
Fit preselector knob (1) onto selector lever, align and press down until it can be felt to snap into place.







Installation:

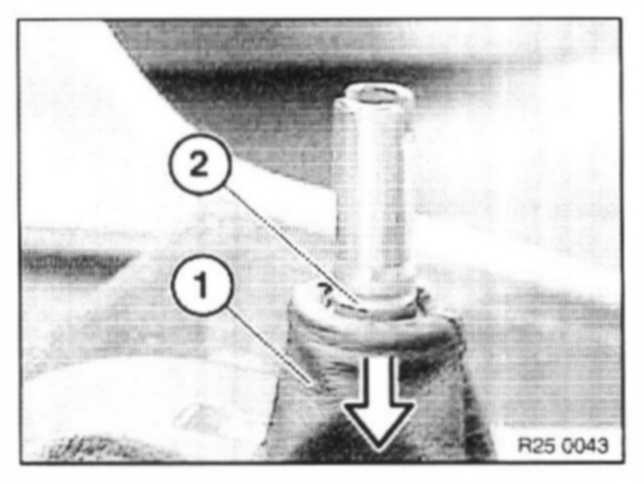

Push rubber gaiter (1) down until groove (2) is fully exposed.

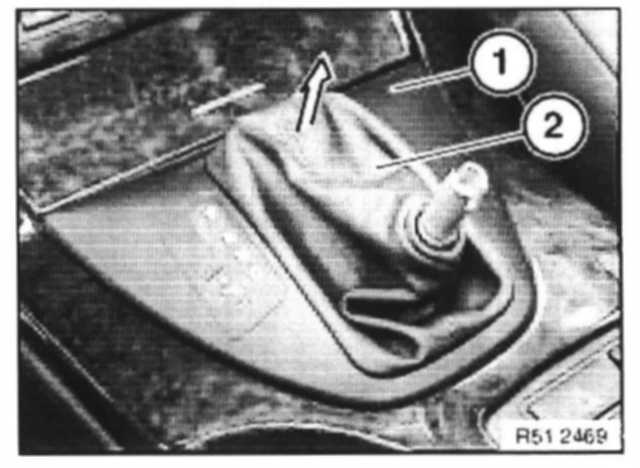

Remove trim (1) with rubber gaiter (2) from center console.

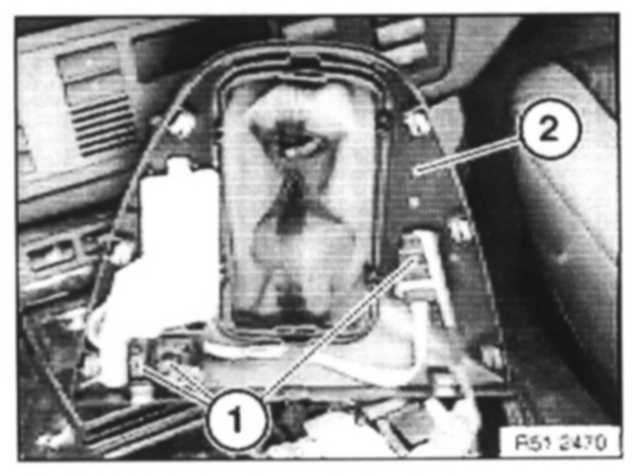

Disconnect plug connections (1) and remove trim (2).
