Replacing Joint Disk For Propeller Shaft

Remove propeller shaft, refer to Drive Propeller Shaft, Service and Repair.

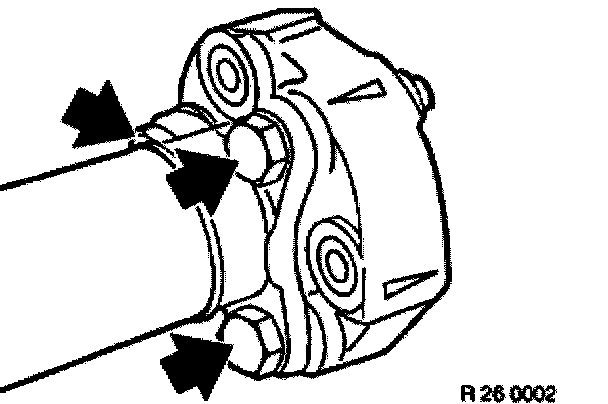

Unfasten screws and remove joint disk.

Installation:
The screw connection may only be tightened by means of the nut.
Tightening Torque, refer to Specifications.

Installation:

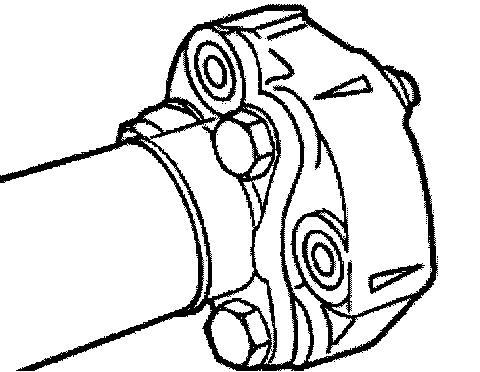

Joint disk must be fitted in such a way that arrows point to flange arms.
