Replacing Centering Mount of Propeller Shaft

Remove propeller shaft, refer to Drive/Propeller Shaft, Service and Repair.





Pack centering bore fully with viscous grease.

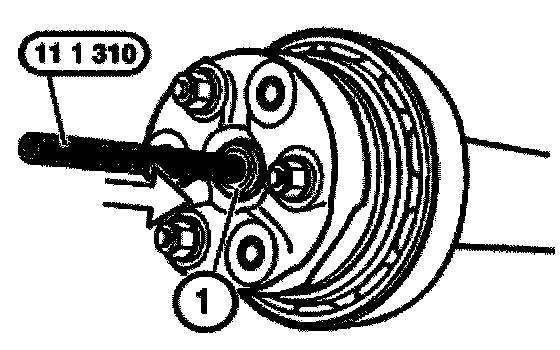

Drive special tool 11 1 130 into centering bore with a plastic hammer.

The center mount is forced out by applying pressure to grease fill (1).

If necessary, top up grease repeatedly.

Note: To drive out the mount, you can also fill the centering bore with water instead of grease.





Remove grease/water from mount bore.

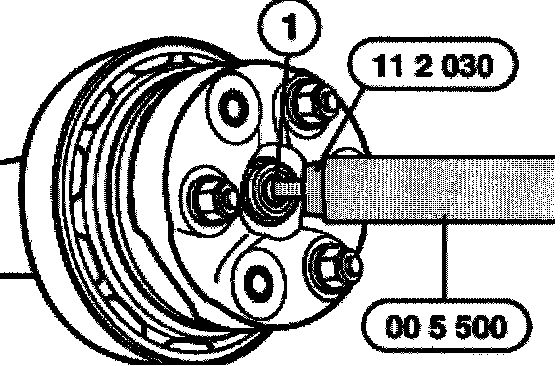

Drive in centering (1) with special tools 00 5 500 and 11 2 030 until protrusion (A) is reached.

Installation:





Dimension A = 4 to 6 mm
