Differential Cover Gasket

33 11 271 Replacing rear cover gasket on rear differential

Important: In event of fluid loss, always check rear differential for traces of wear and/or damage.

After installation:
^ Add rear differential oil

Necessary preliminary tasks:
^ Drain and catch rear differential oil
^ Remove stabilizer from rear axle carrier
^ Support rear differential, release (slacken screws for front rubber mount only)

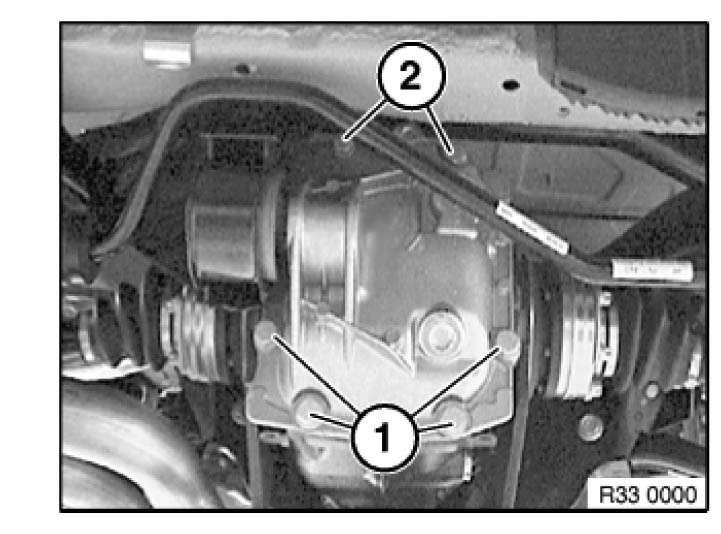

Release screws (1).
Lower workshop jack a little.
Release screws (2).
1AZ Case Covers
M10 8.8 45 Nm
M10 10.9 55 Nm

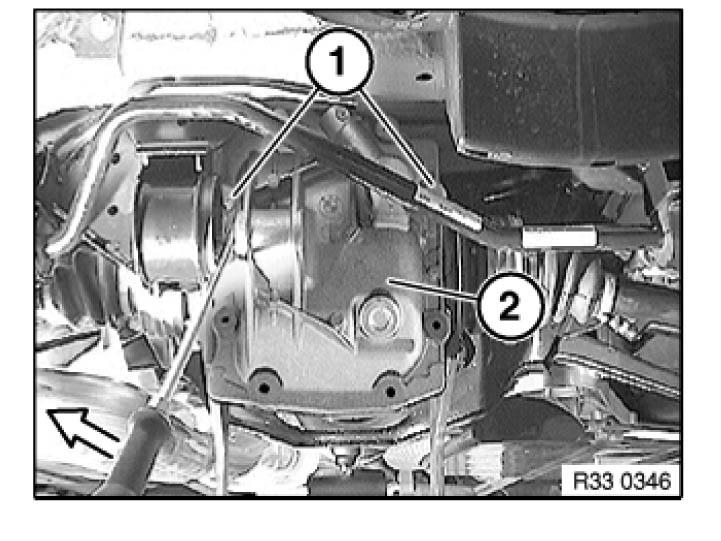

Press rear differential to one side slightly.
Release screws (1).
1AZ Case Covers
M10 8.8 45 Nm
M10 10.9 55 Nm
Remove cover (2).
Clean sealing face on rear differential and on cover.

Installation
Use new gasket.
