Washer Fluid Level Switch: Service and Repair

Replacing Level Switch For Windshield Washer System

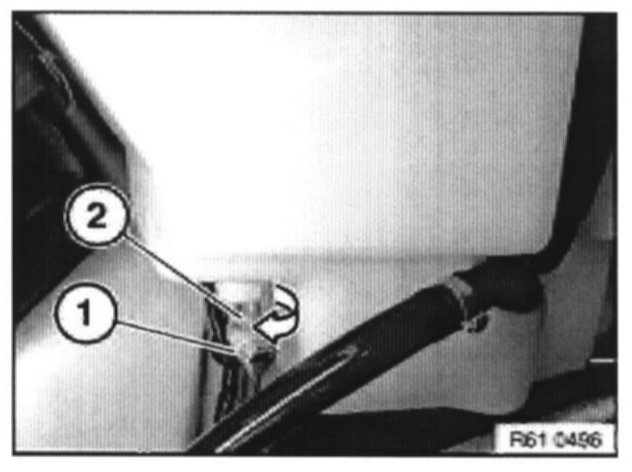

Disconnect plug connection (1).
Turn windshield washer system level switch (2) approx. 90° in direction of arrow and pull out towards bottom.
