Replacing Tank Leakage Diagnosis Module (DM-TL)

Removing And Installing/Replacing Tank Leakage Diagnosis Module (DM-TL)

Remove left rear wheel housing trim.







Release screw.

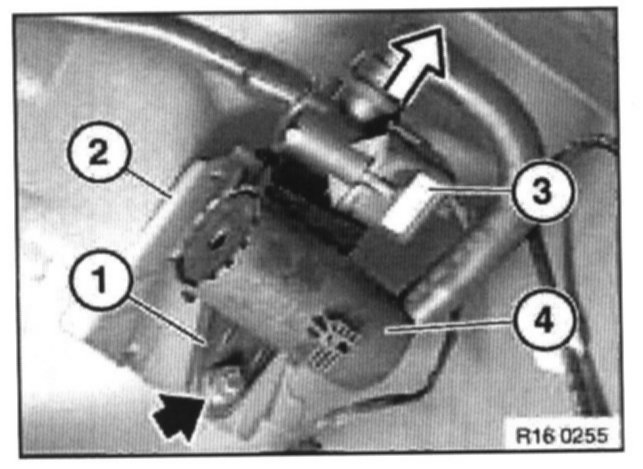

Lift bracket (1) with leakage diagnosis pump (3) and dust filter (4) out of mounting (2).

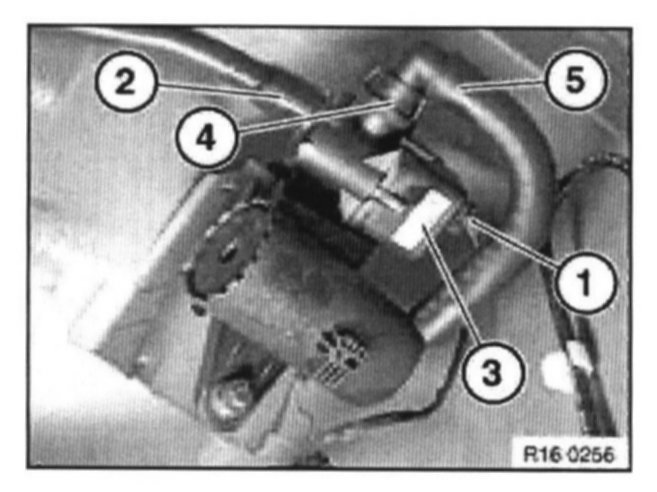

Detach plug (1) and filling vent (2) from leakage diagnosis pump (3).
Press together hose retainer (4) and disconnect molded hose (5) from leakage diagnosis pump (3).







Release screws (1) on rear side of bracket (2) and remove leakage diagnosis pump (3).
