Headlamp Switch: Service and Repair

Removing And Installing Light Switch Unit







Remove left fresh-air grill.

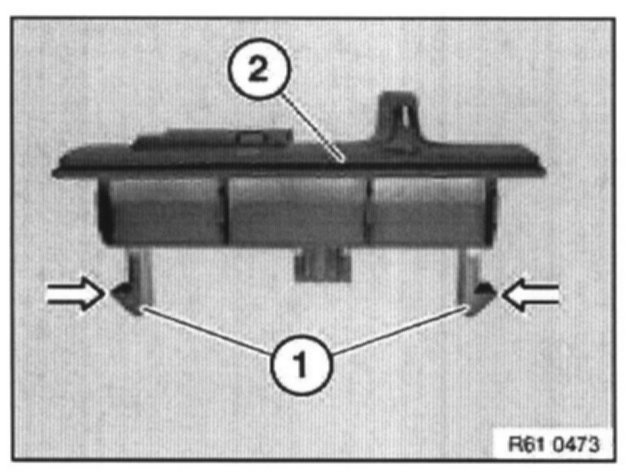

NOTE: For purposes of clarity, illustration shows component removed.


Press retaining hook (1) in direction of arrow and remove switch unit (2).
Disconnect plug.
