Left Side

22 11 110 Replacing left engine support arm (N62)

Necessary preliminary tasks:
^ Remove exhaust system.
^ Remove front axle differential.
^ Remove and install left exhaust manifold.

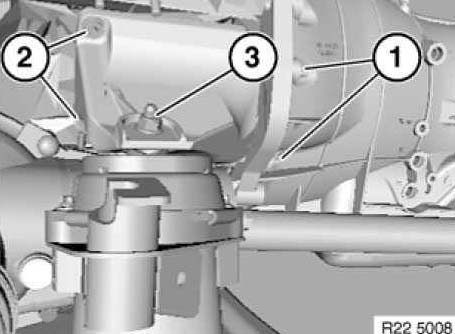

Release screws (1).
Release screws (2) and nuts (3).
Remove engine bracket.
Engine mount to engine support arm E60
/E61/E63/E64/E65/E66/E67/E53/E83/E87 M10 / 10.9 56 Nm
E65 / E66 / E67 M 12 10.9 100 Nm
E85 / E52 42 Nm
