Supply DME Control Module (Automatic Transmission Up to 09/03)
Supply DME Control Module (Automatic Transmission Up to 09/03)

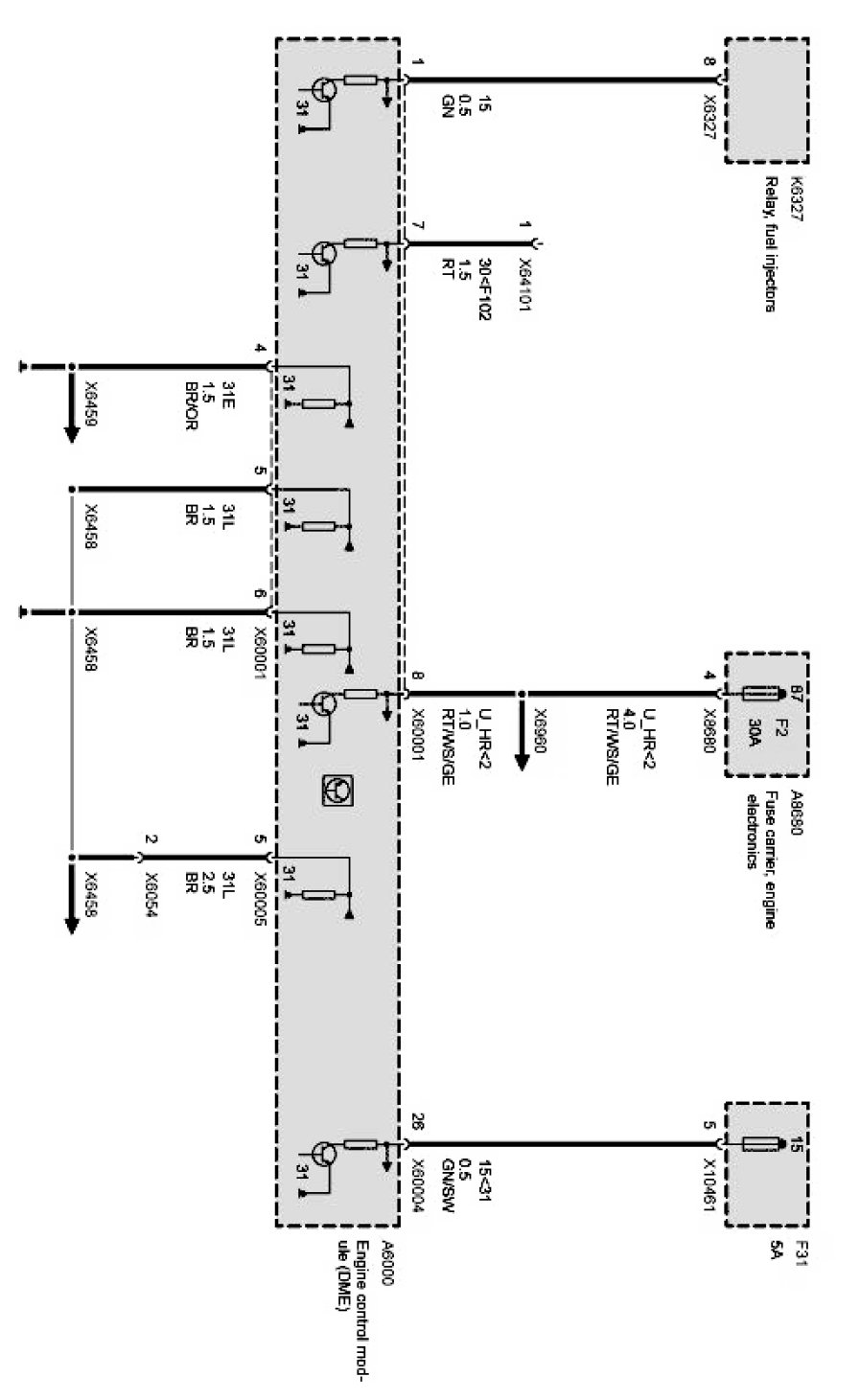

E53 Power supply DME control module Part 1 Of 1:
