Lighting (Xenon Lights As Of 09/02 Up to 09/03)

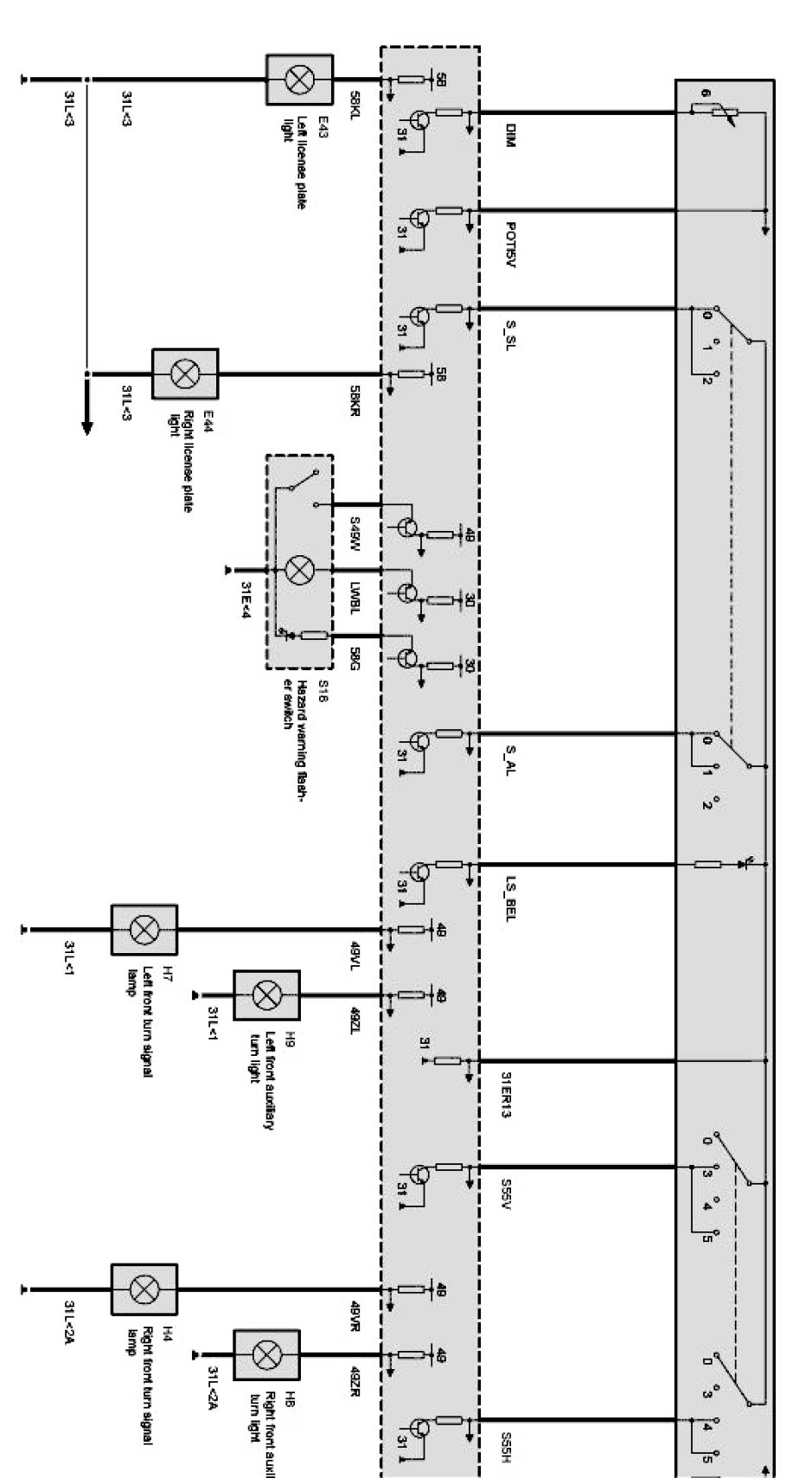

E53 Lights Part 1 Of 6:

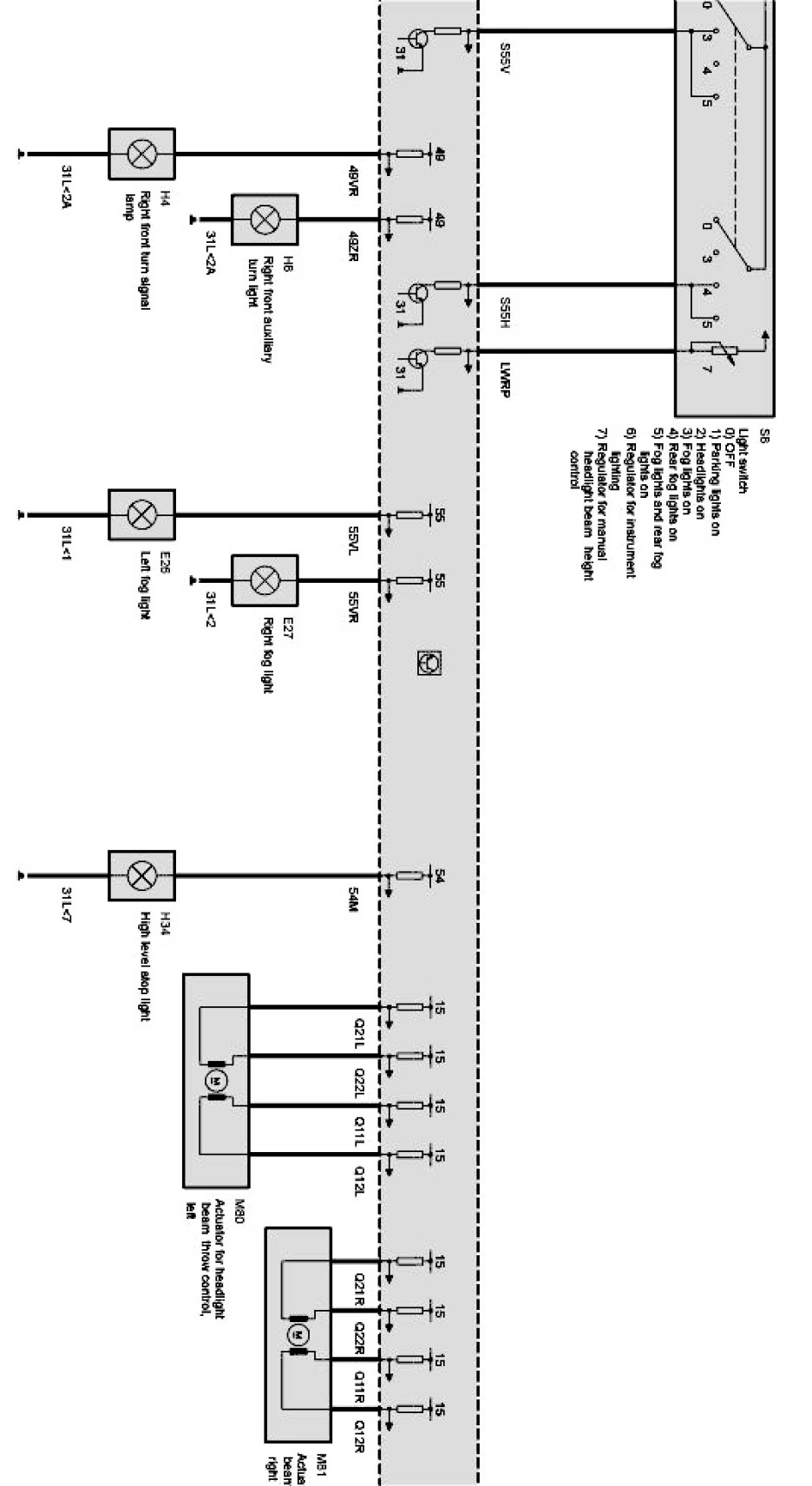

E53 Lights Part 2 Of 6:

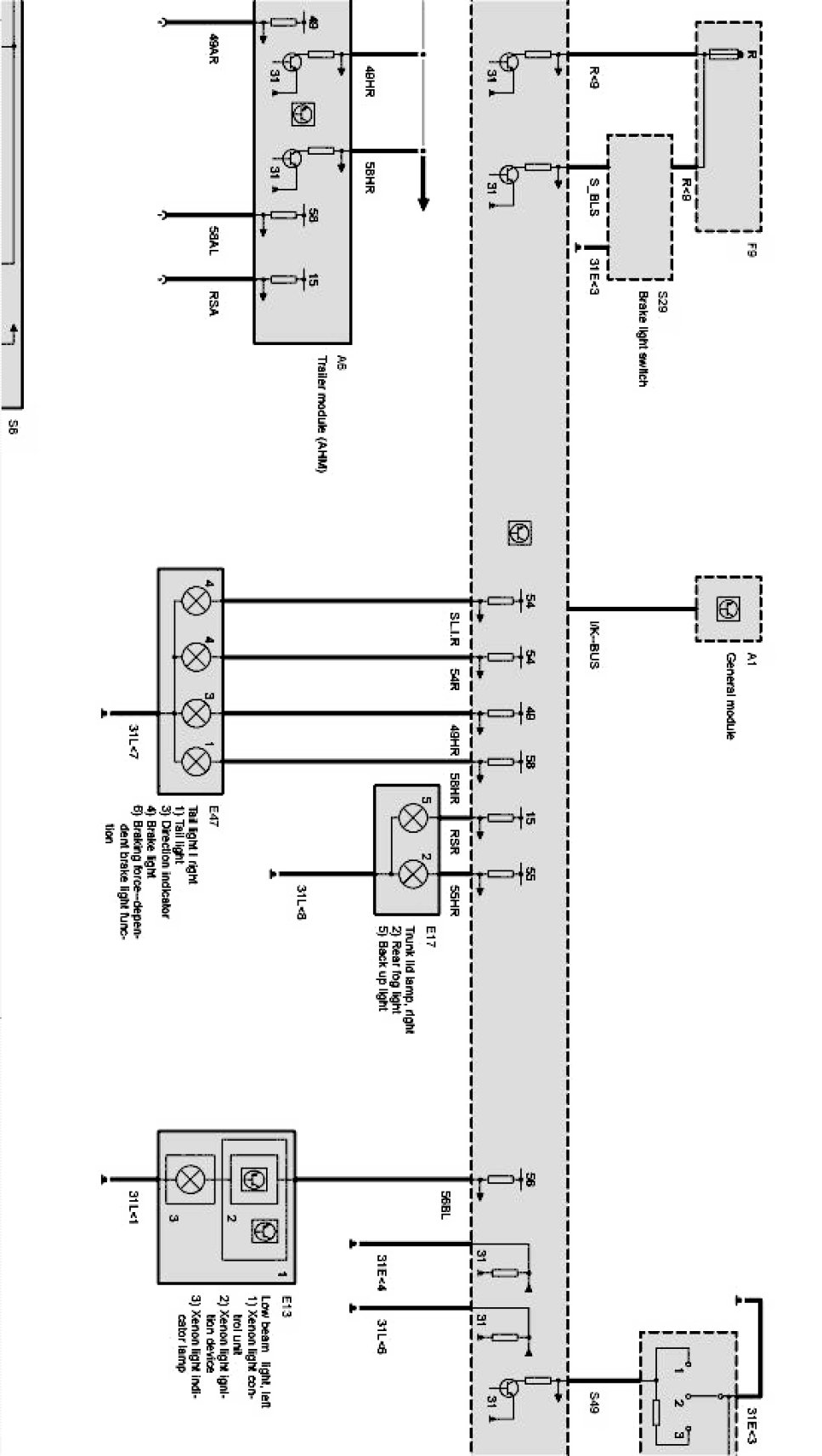

E53 Lights Part 3 Of 6:

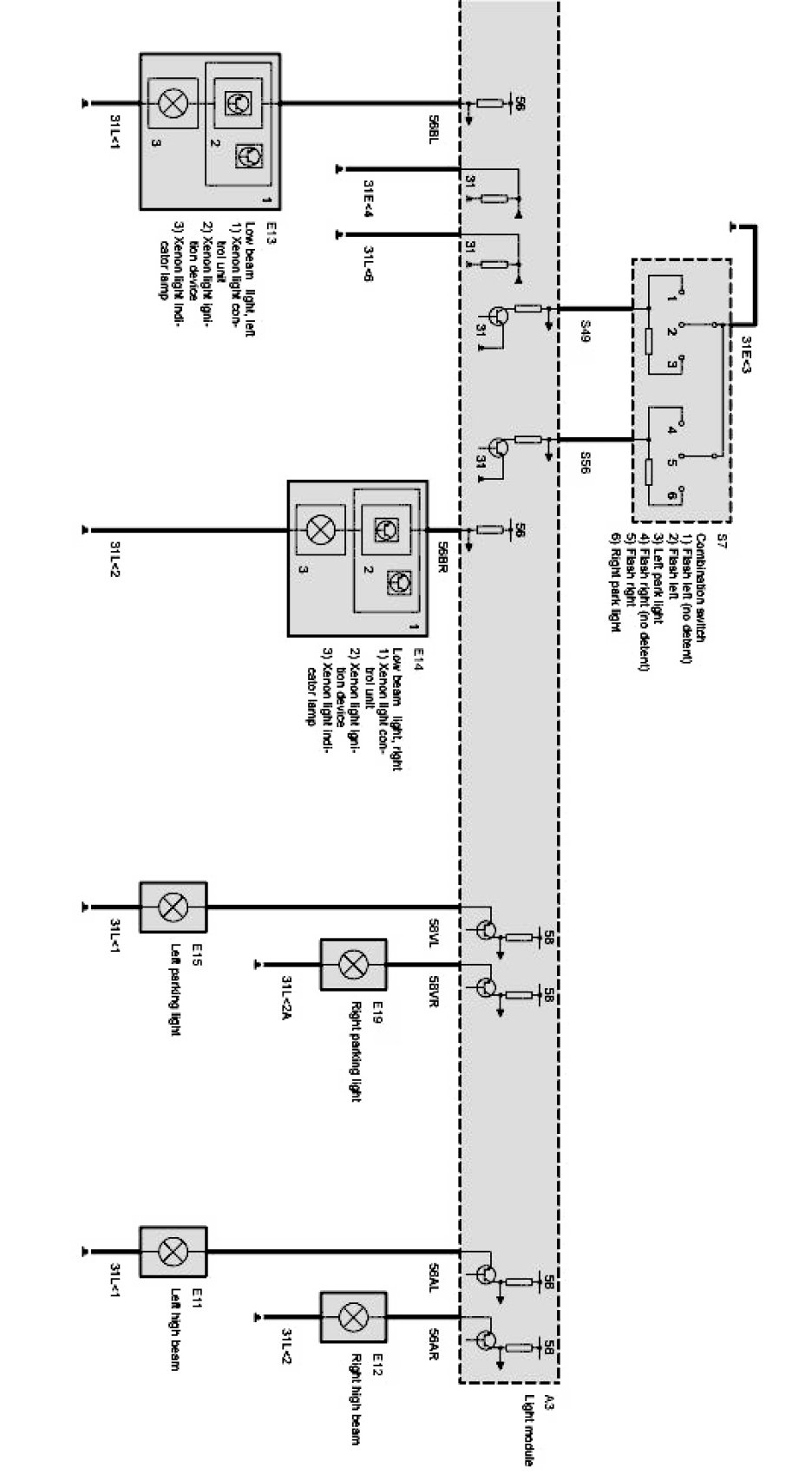

E53 Lights Part 4 Of 6:

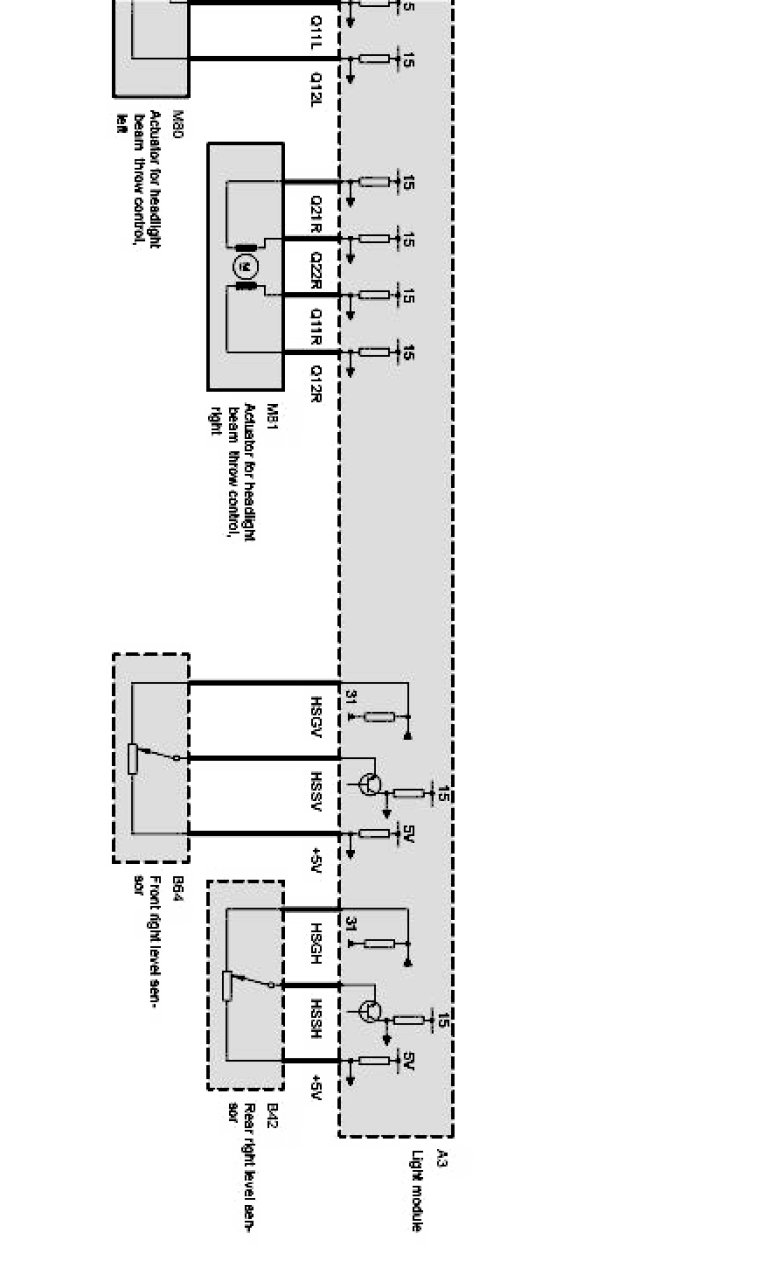

E53 Lights Part 5 Of 6:



E53 Lights Part 6 Of 6:
