Home >> BMW >> 2003 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Lighting >> Headlight Widening Adjustment >> Auto. Headlight Widening (LWR) (Actuator Motors) (LRA Automatic Headlight Vertical Aim Control Up to 09/02)

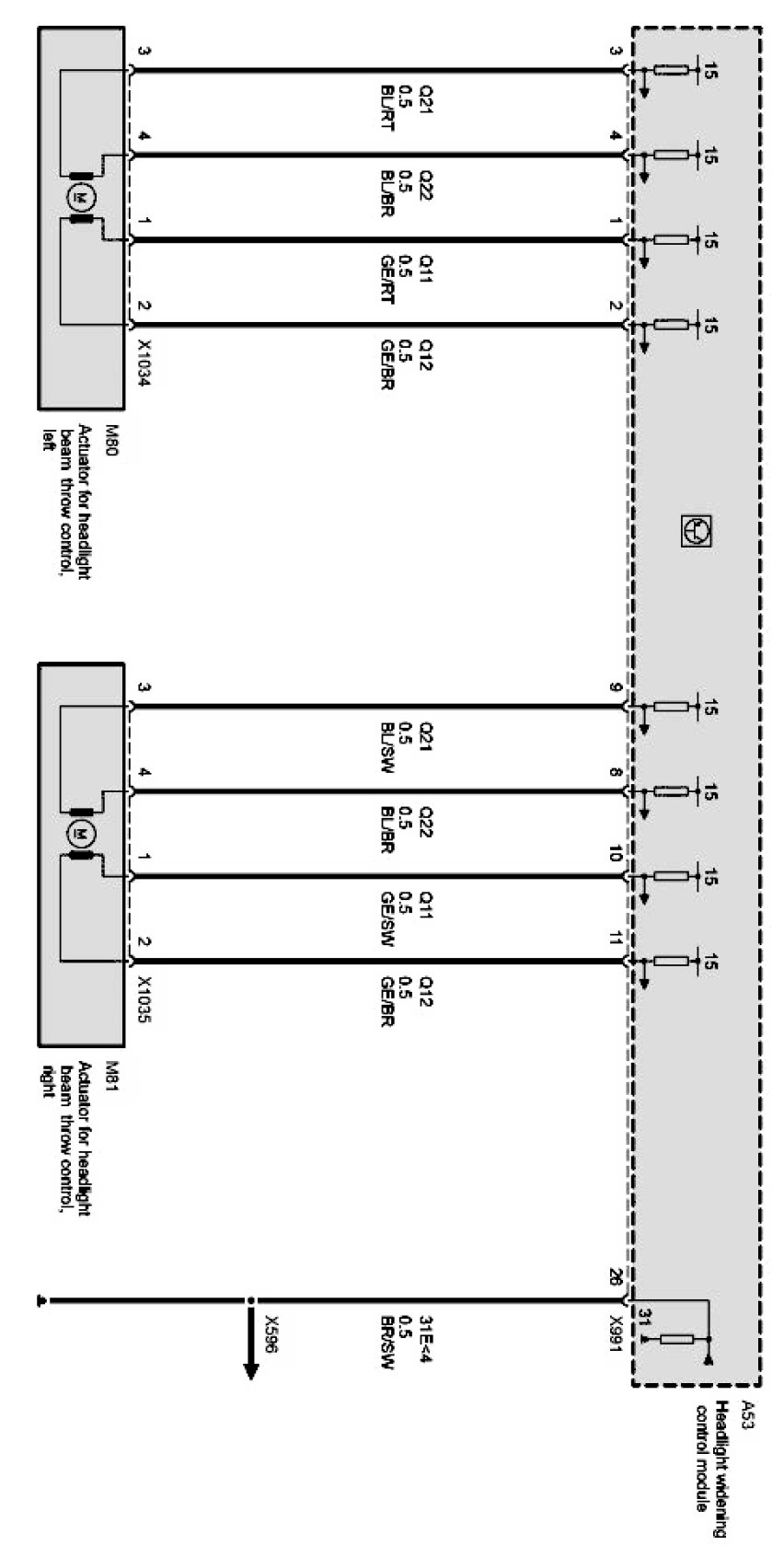

Auto. Headlight Widening (LWR) (Actuator Motors) (LRA Automatic Headlight Vertical Aim Control Up to 09/02)

E53 Auto. headlight widening (LWR) (actuator motors) Part 1 Of 1:
