Home >> BMW >> 2003 >> X5 3.0i (E53) L6-3.0L (M54) >> Repair and Diagnosis >> Diagrams >> Components >> B_Sensors, Transducers >> B8 Pressure Sensor, Air Conditioning System >> B8, X12600 (up to 09/03)

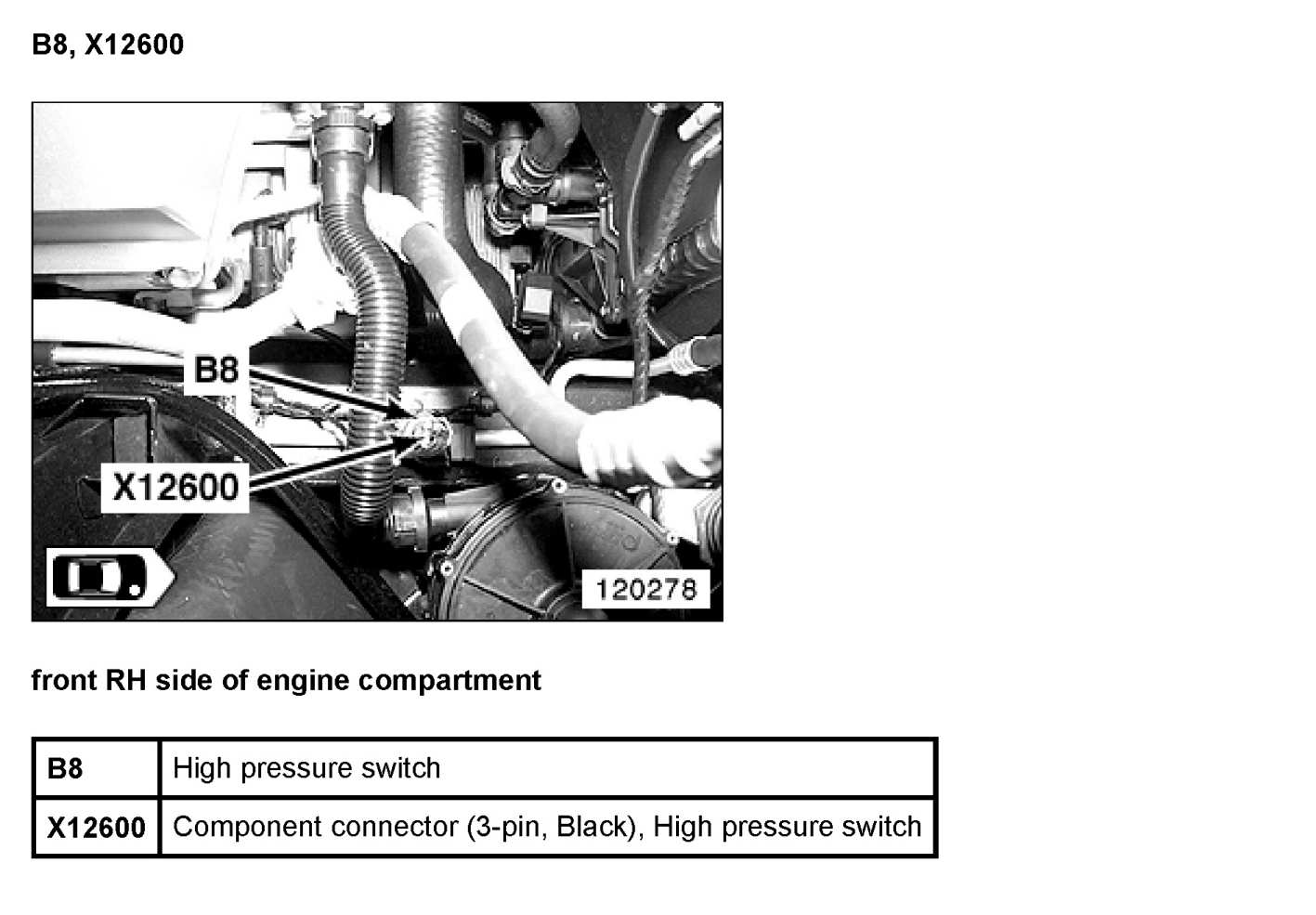

B8, X12600 (up to 09/03)
