Replacing Ski Bag With Cassette on Rear Seat

Removing And Installing/Replacing Ski Bag With Cassette On Rear Seat (Through-Loading System) (Touring)

Remove center armrest.







Open cover at rear.

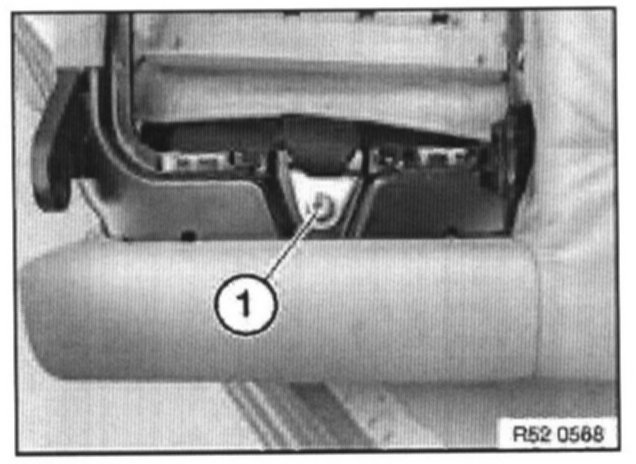

Unscrew bolt (1).

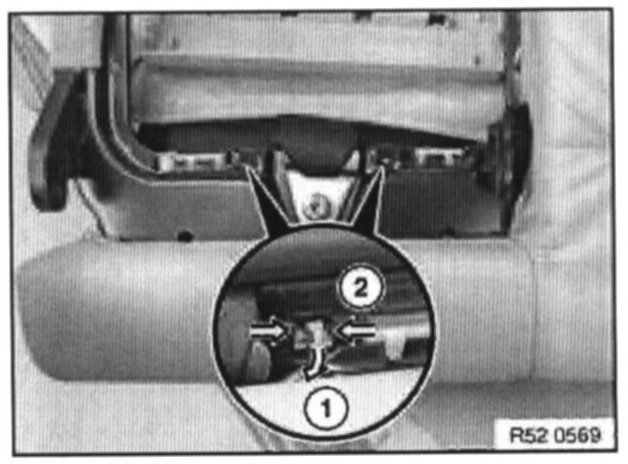

- Bend central metal element (1) at foot of ski bag towards front at bottom.
- Unlock seat back and gently tilt forwards.
- Carefully press together clip feet (2) of cassette and remove cassette towards rear at bottom paying attention to clips at side and top.

Installation Note: Clip feet must not be damaged.

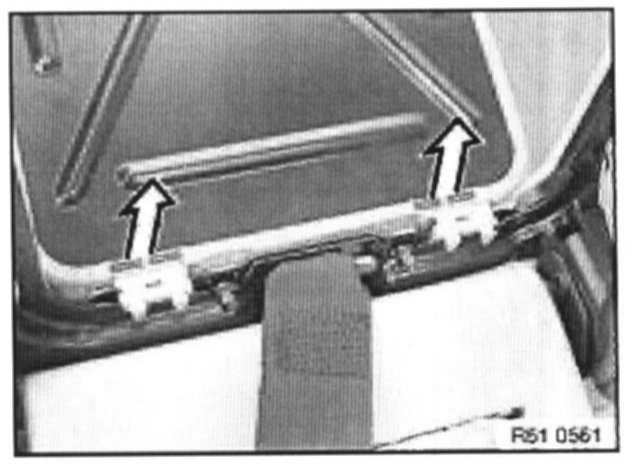

Unclip cover at rear towards top.
