Replacing Backrest Frame on Left or Right Front Seat (Comfort)

Removing And Installing/Replacing Backrest Frame On Left Or Right Front Seat (Comfort)







Remove backrest cover at bottom.


CAUTION: Do not under any circumstances turn screw underneath screw (2), this would destroy the seat frame.

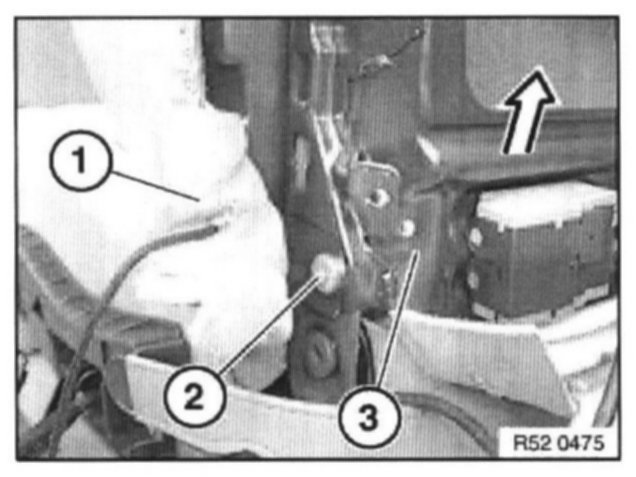

Press backrest cover (1) to one side and release screw (2) on left and right.
Detach backrest frame (3) with backrest cover upwards.

Installation:
Replace screws (2) (microencapsulation).


End of partial operation:
Removing and installing backrest frame

Following operation:
Replacing backrest frame.
Completely remove backrest cover and padding.
If necessary, remove lumbar cushion on front seat.
If necessary, remove valve housing for front lumbar support.
If necessary, remove drive unit for lumbar support.
If necessary, remove shaft for head restraint adjustment
Remove drive unit for head restraint adjustment.
If necessary, remove gearing for head restraint adjustment.
If necessary, remove valve housing for lumbar support.







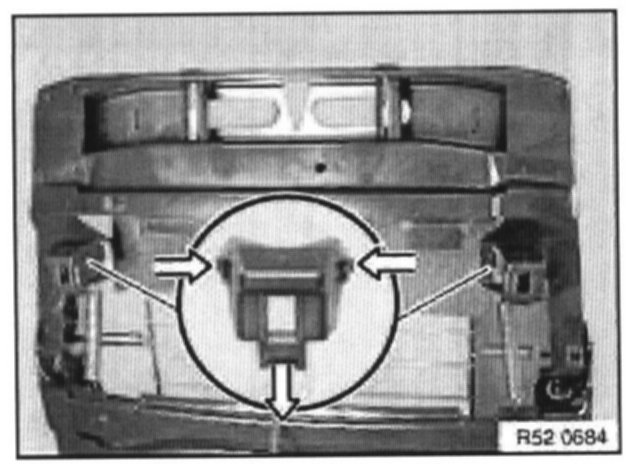

Unclip mount for rear panel (clip) towards rear from backrest frame.

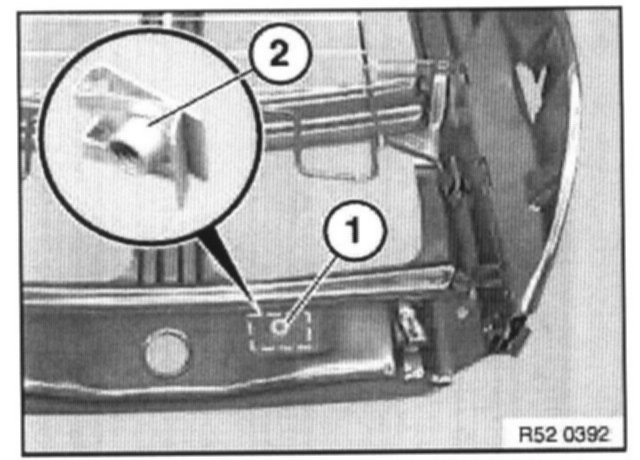

If necessary, release screw (1) and remove metal nut (2).

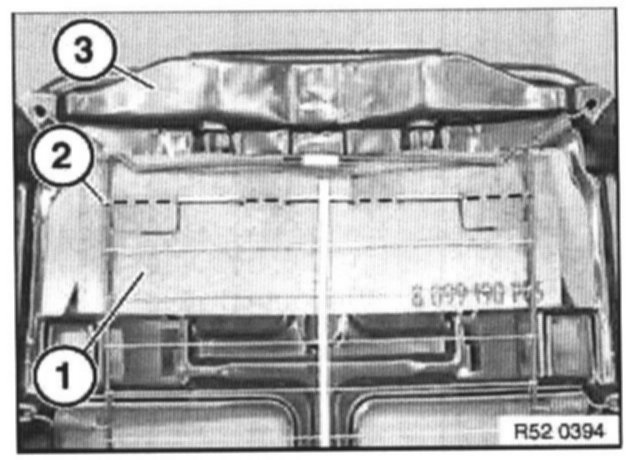

If necessary, remove mat (1) from spring wire (2) of backrest frame (3).







Installation:

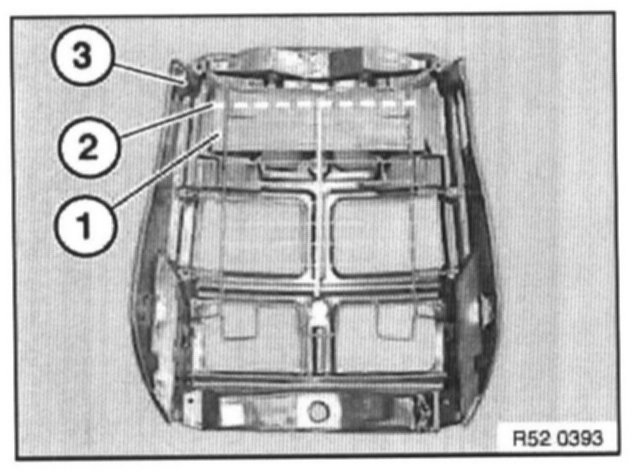

If necessary, suspend mat (1) on uppermost spring wire (2) on backrest frame (3).

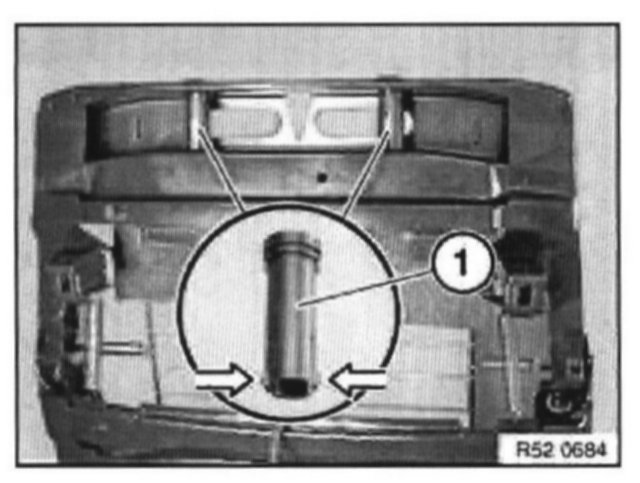

Lift out head restraint guides.
