Replacing Upper Trim For Rear Lid Upper Section

Removing And Installing/Replacing Upper Trim For Rear Lid Upper Section

Remove side trim for rear lid upper section.

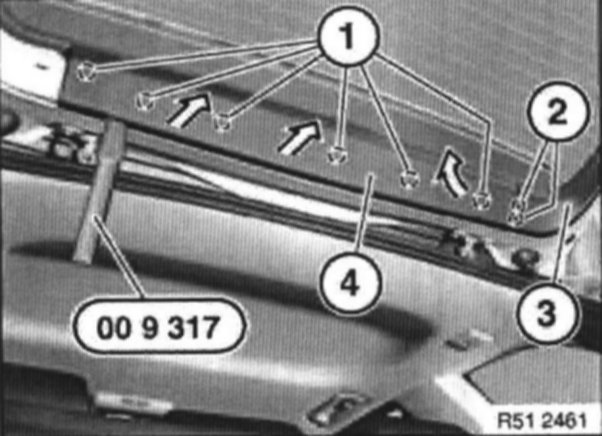

With special tool 00 9 317, unclip clips (1) in upper trim (4).
Feed trim (4) with swallow-tail guides (2) out of side trim (3).







Installation:

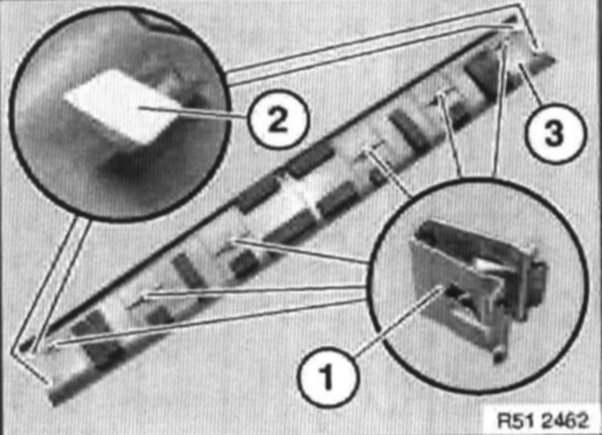

If necessary, detach clips (1) from trim (3) and insert in rear lid. Swallow-tail guides (2) must not be damaged.
