Replacing Side Trim For Rear Lid Upper Section

Removing And Installing/Replacing Side Trim For Rear Lid Upper Section







Open rear lid at top.

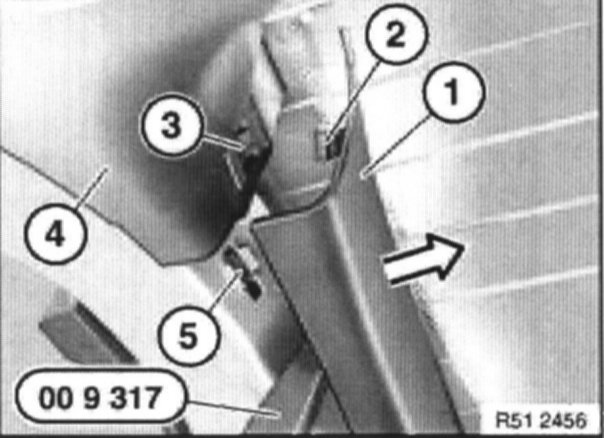

Using special tool 00 9 317, lever out side trim (1) on left/right with clip (2) from retainer (3) in lower trim (4).

Installation Note: If necessary, replace faulty retainer (5).

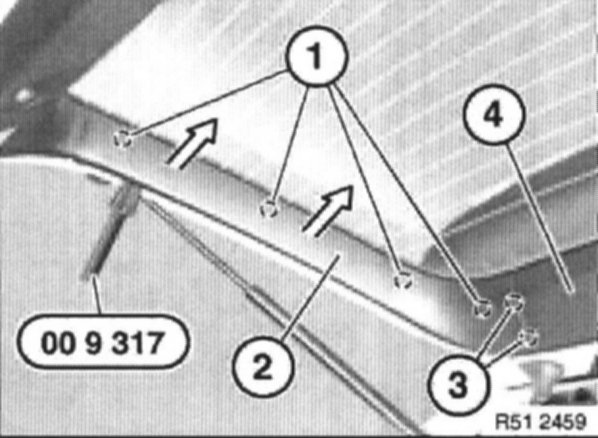

With special tool 00 9 317, unclip clips (1) in side trim (2).
Feed trim (2) out of swallow-tail guides (3) in upper trim (4) and remove.







Installation:

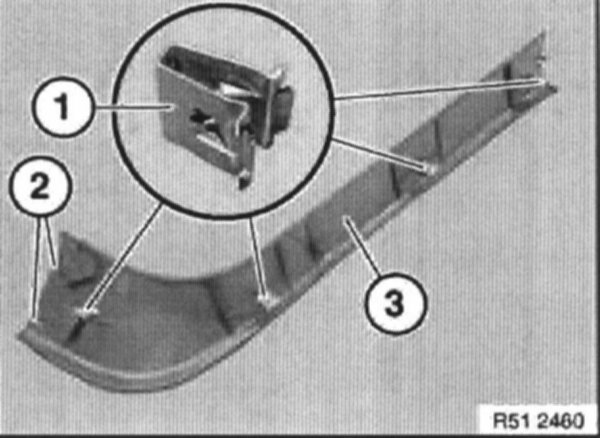

If necessary, detach clips (1) from trim (3) and insert in rear lid. Mounts (2) must not be damaged.
