Removing and Installing Handle Strip (on Trunk Lid)

Removing And Installing Handle Strip (On Trunk Lid)







Version from 10/99:
Remove panel for rear lid in rear area.

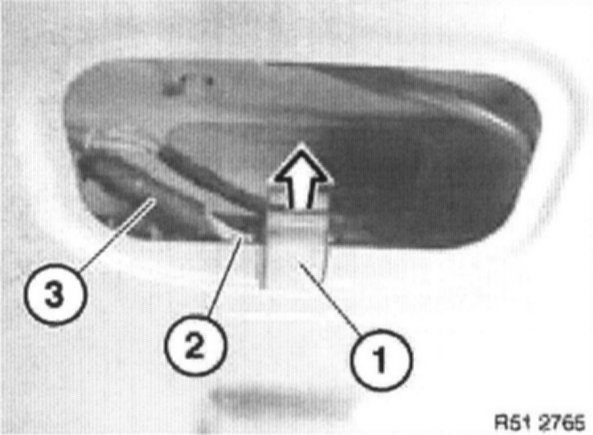

Feed wiring harness (2) in direction of arrow out of mounting (1).
Disconnect plug connection (3).







Release screws (1) and withdraw handle strip (2) somewhat.

Version from 10/99:
Remove strip handle (2).

Installation Note: Check function.







Version upto 10/99:

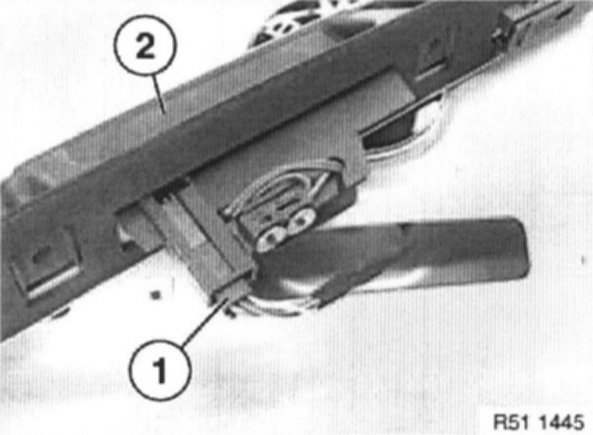

Disconnect plug connection (1) and remove handle strip (2).

Installation Note: Check function.
