Replacing Insert For Trim on Rear Lid Lower Section

Removing And Installing/Replacing Insert For Trim On Rear Lid Lower Section

Open rear lid lower section.

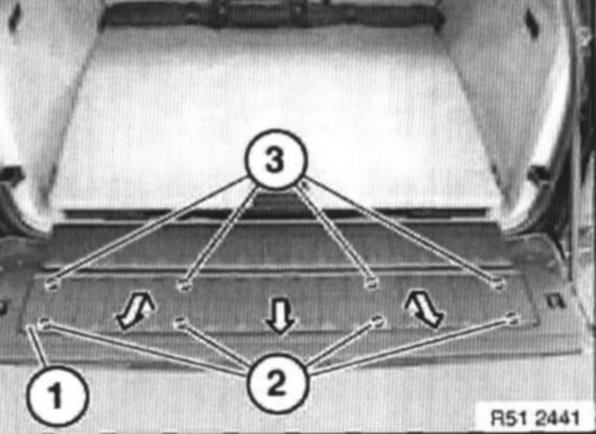

Lever rear insert (1) upwards out of retainers (2) and pull towards rear out of guides (3).







Installation:

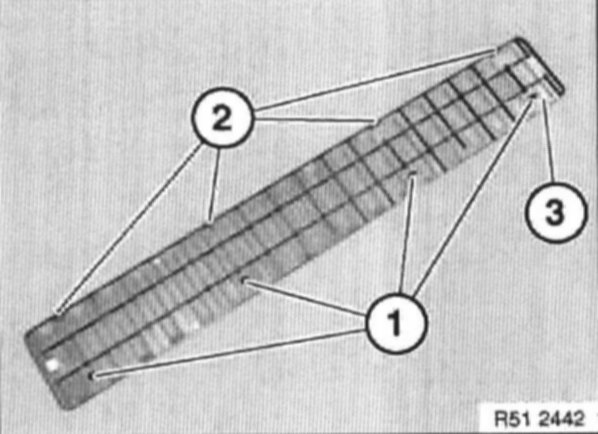

Mounts (1) and guides (2) on insert (3) must not be damaged.

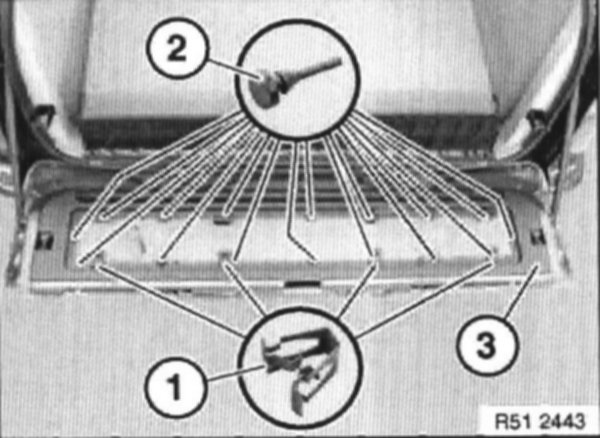

If necessary, replace faulty retainers (1) and rubber parts (2) on rear lid lower section (3).
