Replacing Grill For Bumper Trim (Up to 10/03)

Removing And Installing/Replacing Grill For Bumper Trim (Up to 10/03)

Remove front bumper trim.

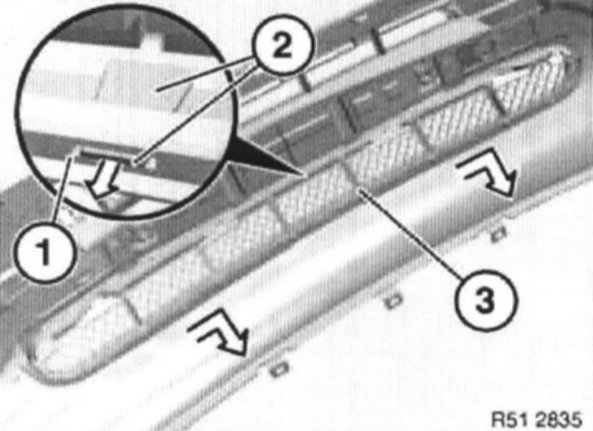

Lever out rib (1) from fixture (2) and unhook grill (3) to right/rear.







Installation:

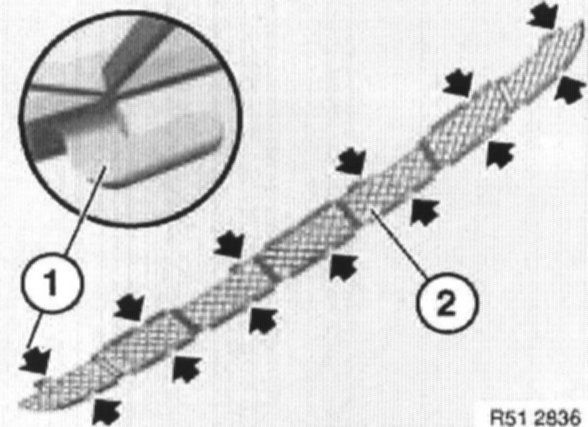

Hooks (1) of trim (2) must not be damaged.
