Replacing Multi-Information Display

Removing And Installing/Replacing Multi-information Display







Remove volume control knob.

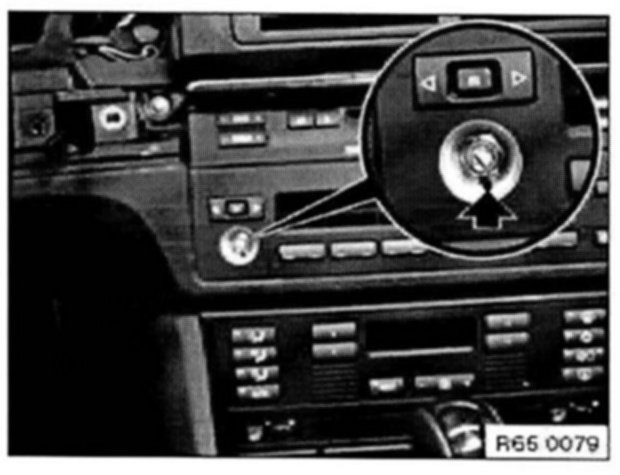

Turn lock with Torx screwdriver through approx. 90° and pull out multi-information display.

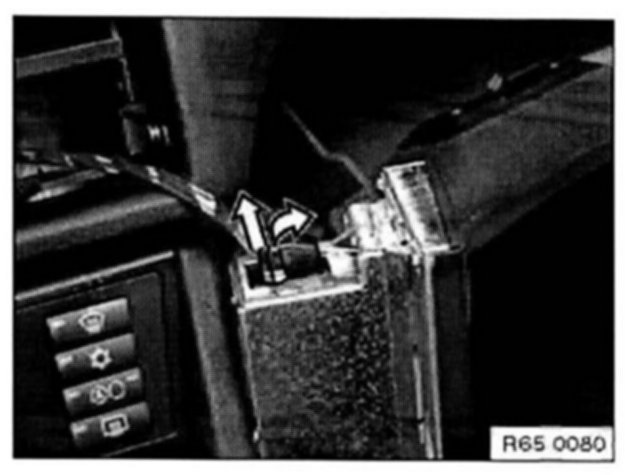

Disconnect plug connection.
