Removing and Installing on-Board Monitor

Removing And Installing On-board Monitor


Remove center fresh air grill.

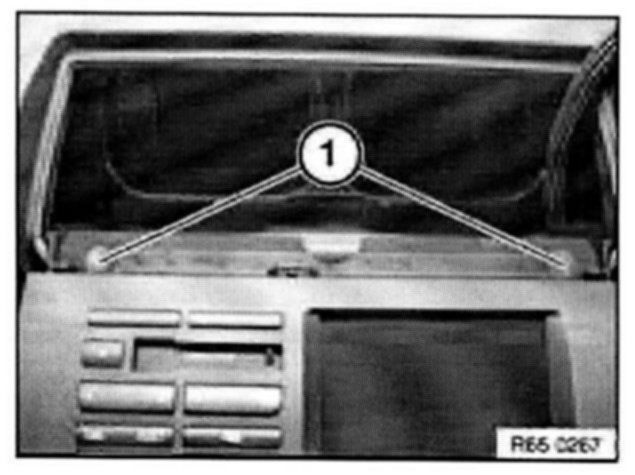

Detach felt strips (1) in lower area and fold upwards.

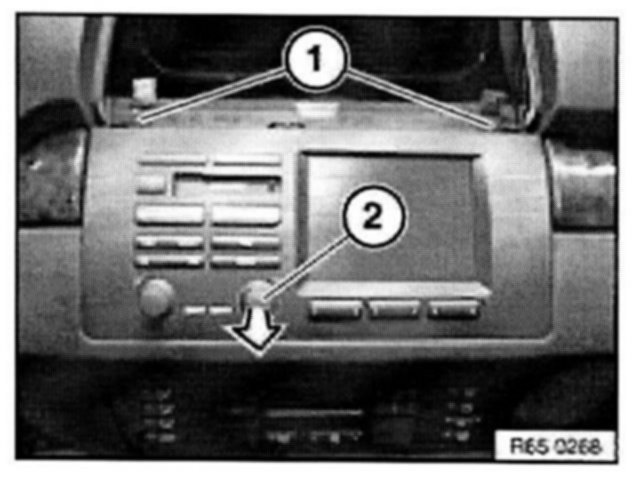

Release screws (1).
Detach rotary knob (2).

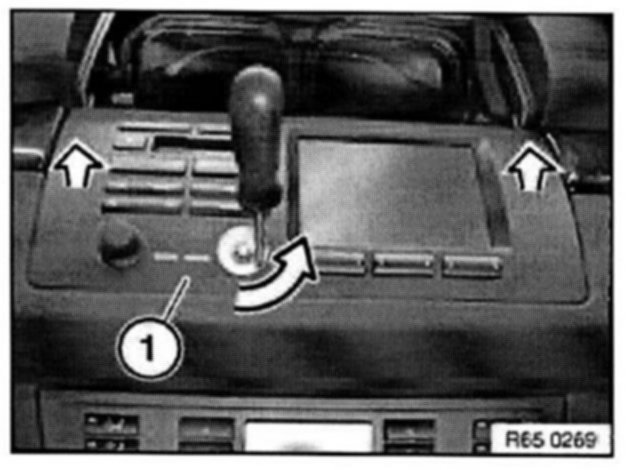

Insert suitable screwdriver in aperture.
Turn screwdriver approx. 45° in direction of arrow and unlock on-board monitor.
Withdraw on-board monitor (1) and disconnect plug connections.

Installation Note: On-board monitor (1) must snap securely into place in lower lock.
