Home >> BMW >> 2003 >> M3 Coupe (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Wipe and Wash Functions >> Rear-Window Wiping/Washing (Touring or Compact) >> Wiper Module

Wiper Module

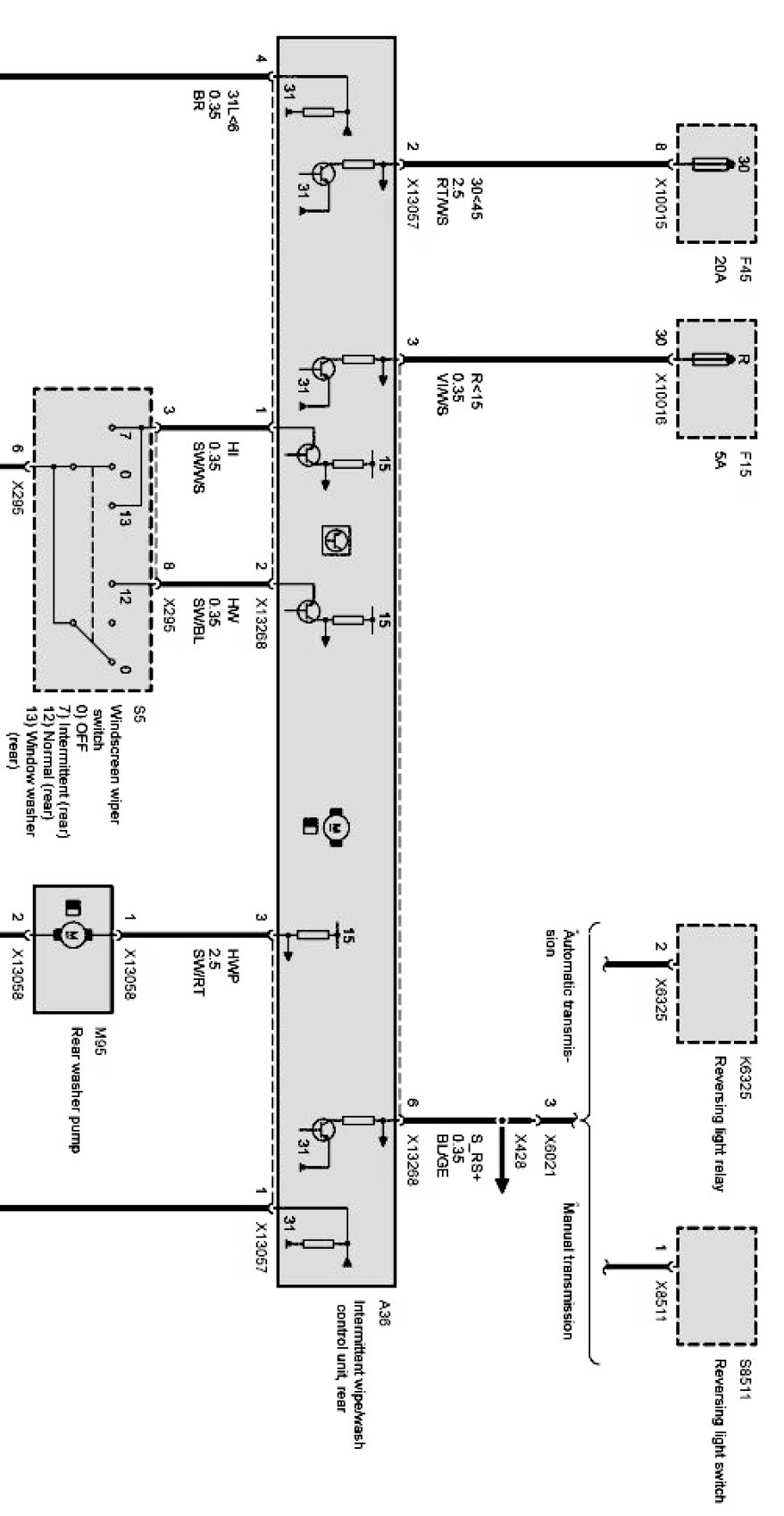

Wipe-wash control, boot lid Part 1:



Wipe-wash control, boot lid Part 2:
