Removing and Installing/Replacing Trim Panel For Left or Right Door Pillar (Top) (Coupe)

51 43 148 Removing And Installing/Replacing Trim Panel For Left Or Right Door Pillar (Top) (Coupe)

Unclip side trim panel in area of door pillar trim panel.







Lever out cap (1).
Release screw (2) and detach seatbelt strap (5).

Installation:
Tightening Torque, refer to Technical Data 72 11 9AZ.
9AZ Slide bar to body 44 Nm
Fit rosette (3) and spacer bush (4).

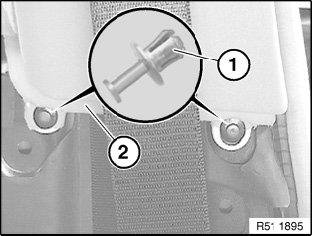

Release expansion rivets (1) on trim (2).

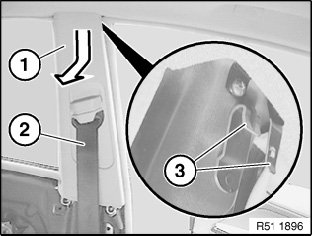

Pull off door pillar trim panel (1) at top towards bottom.
Feed out seatbelt strap (2).

Installation:
Insert trim panel (1) at top correctly into locators (3).
