Headlamp Washer Pump: Service and Repair

Removing And Installing/Replacing Washer Pump For Headlight Cleaning System (M3)


NOTE:
Drain fluid tank for windshield washer system
Remove cover on right.

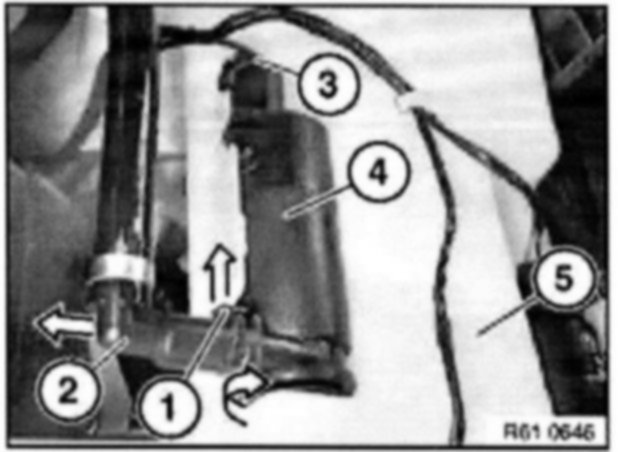

Remove hose clip (1) in direction of arrow.
Detach hose (2) in direction of arrow from washer pump for headlight cleaning system (4).
Disconnect plug connection (3).
Turn washer pump of headlight cleaning system (4) in direction of arrow and lift out of water reservoir for windshield washer system (5).

Installation:
Replace sealing ring/strainer of washer pump.
Coat sealing ring of washer pump with antiseize agent.
Ensure hose is laid without kinks.
Fill fluid tank for windshield washer system.
