Shift Lever

Replacing Complete Shift Lever
Remove selector lever, refer to Shift Lever Assembly.

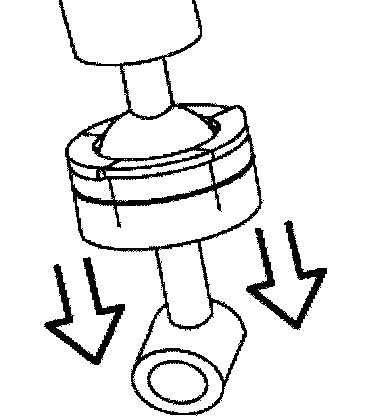

Detach mount from selector lever.

Installation:
Grease ball joint.
Grease, refer to BMW Service Operating Fluids.

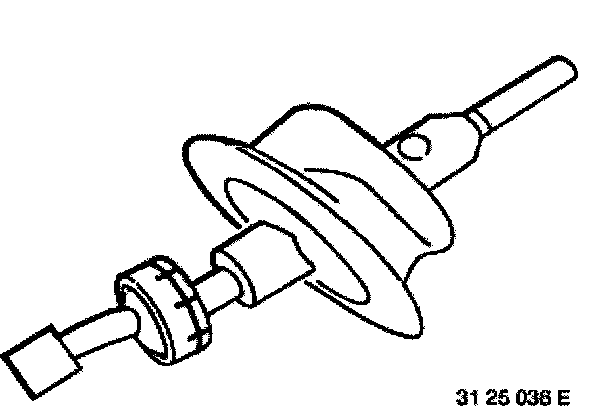

Detach rubber gaiter from selector lever.





Installation:

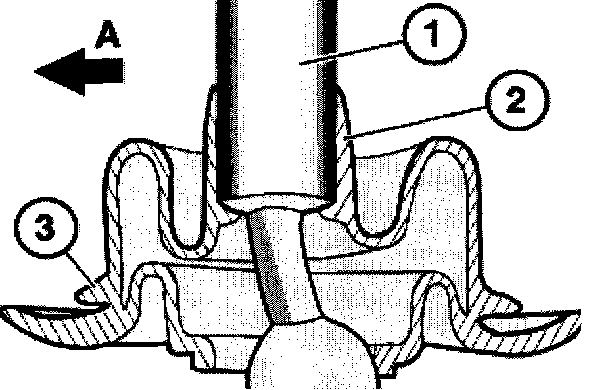

Degrease selector lever (1).

Coat rubber bellows on inside of shaped section (2) with Circo light.


Pull rubber gaiter from above over selector lever and align.

Arrow (3) on rubber gaiter must point in direction of travel (A).
