Replacing Input Shaft Seal

Replacing Radial Seal On Input Shaft

Note: After completion of work, check transmission oil level.

Caution:
^ Use only the approved gear oil in this manual transmission.
^ Failure to comply with this requirement will result in serious damage to the transmission.

Remove transmission.

Remove guide tube.

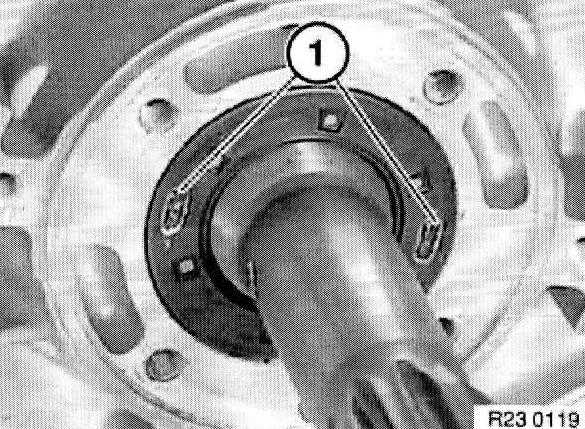

Note: Two covered (1) removal holes are located on the end face of the radial sealing ring.

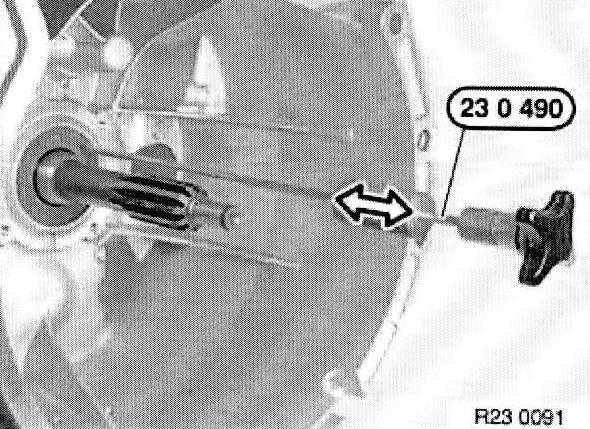

Screw special tool 23 0 490 into one of the two removal holes.

Pull radial seal out of transmission housing with aid of impact weight.

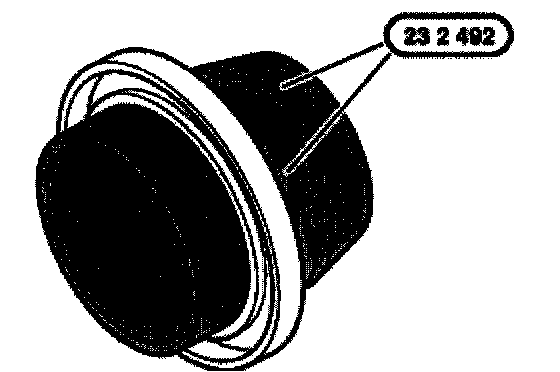

Connect special tool 23 2 492 together (cap and sleeve).
Coat sealing lips of radial seal with gear oil and push onto special tool.

Remove cap.

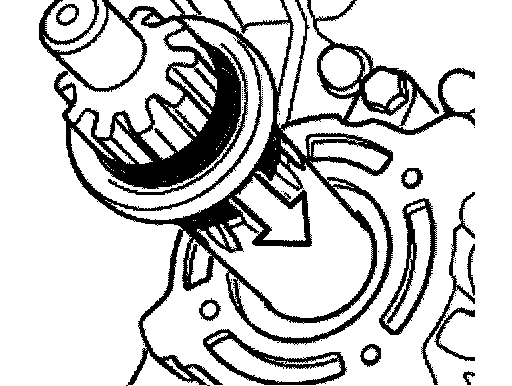

Push sleeve with radial seal onto drive shaft.

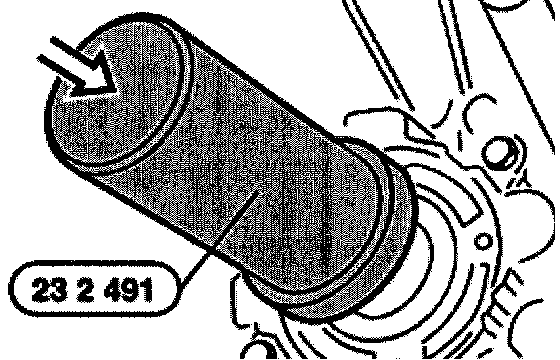

Drive in radial seal as far as it will go with special tool 23 2 491.

Note: To drive in: use plastic hammer.

Detach special tool 23 2 492 (sleeve) from drive shaft.
