Output Yoke: Service and Repair

Replacing Transmission Output Flange

Note: Remove output flange and radial seal. The output flange is installed with a preload of 0.05 ... 0.22 mm. Preload is set with the help of shims.

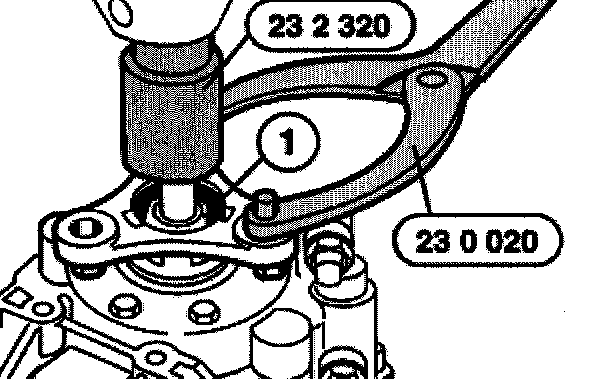

Calculating shims: Screw on collar nut (1) without shim and tighten down with special tool 23 0 020 / 23 0 320.
Tightening torque 200 Nm.

Release collar nut (1).

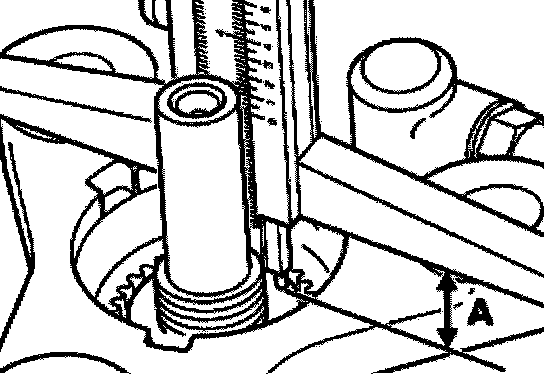

Calculate distance "A" from flange surface to extension of output shaft.
Example:
"A" = 26.2 mm

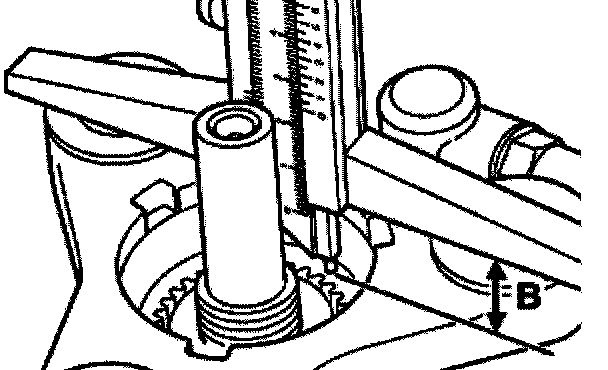

Calculate distance "B" from flange surface to support surface of collar nut.
Example:
"B" = 22.7 mm

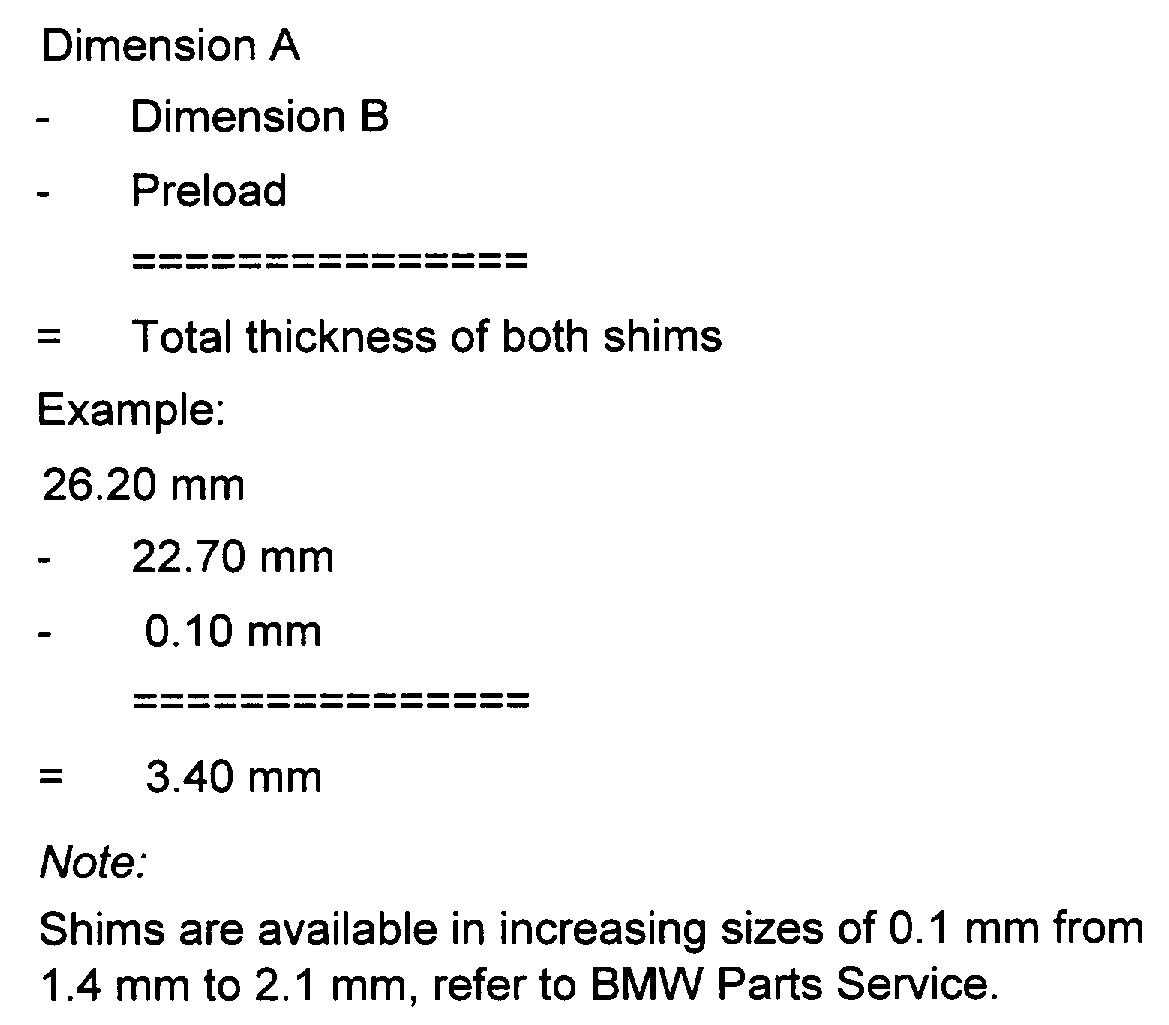

Example of Calculation
