Clutch Slave Cylinder: Service and Repair

Remove or Replacing Clutch Operating Cylinder

Note: After completing work, bleed clutch hydraulics.





Close off supply hose to clutch-sensor cylinder with special tool 13 3 010.





Remove transmission underbody protection if necessary.

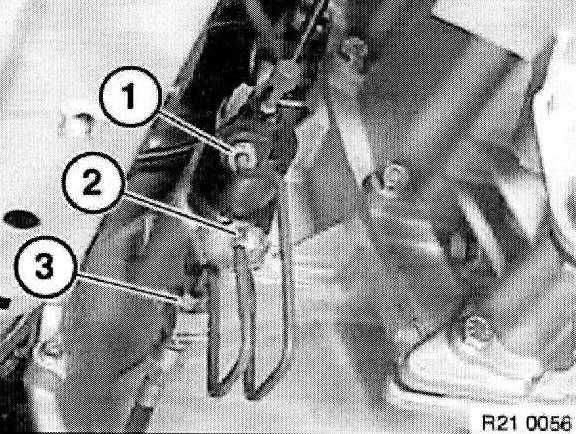

Release union screw (1) on hydraulic line.





Release nut (2) and remove hydraulic line (3) with bracket.

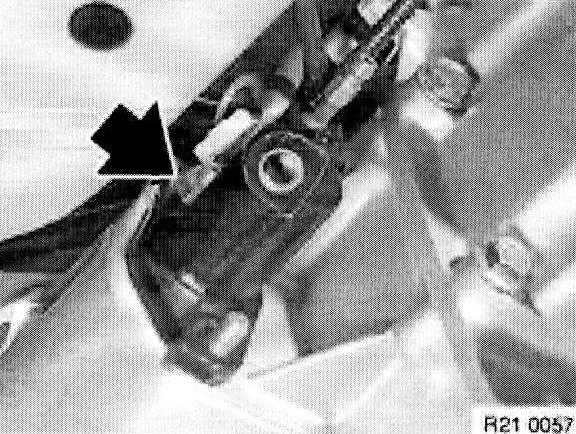

Release nut and remove clutch slave cylinder.





Installation:

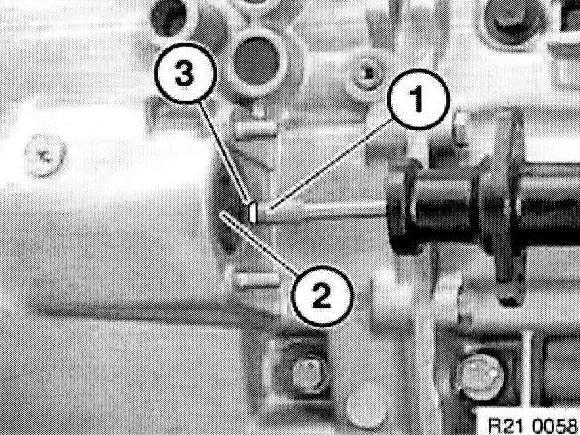

Clean thrust member (1) and contact face on release lever (2).
Lightly grease thrust member (1) at contact face (3).
