Home >> BMW >> 2003 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Specifications >> Mechanical Specifications >> Engine >> Camshaft, Engine >> 11 31 Camshaft >> 1AZ - 5AZ

1AZ - 5AZ

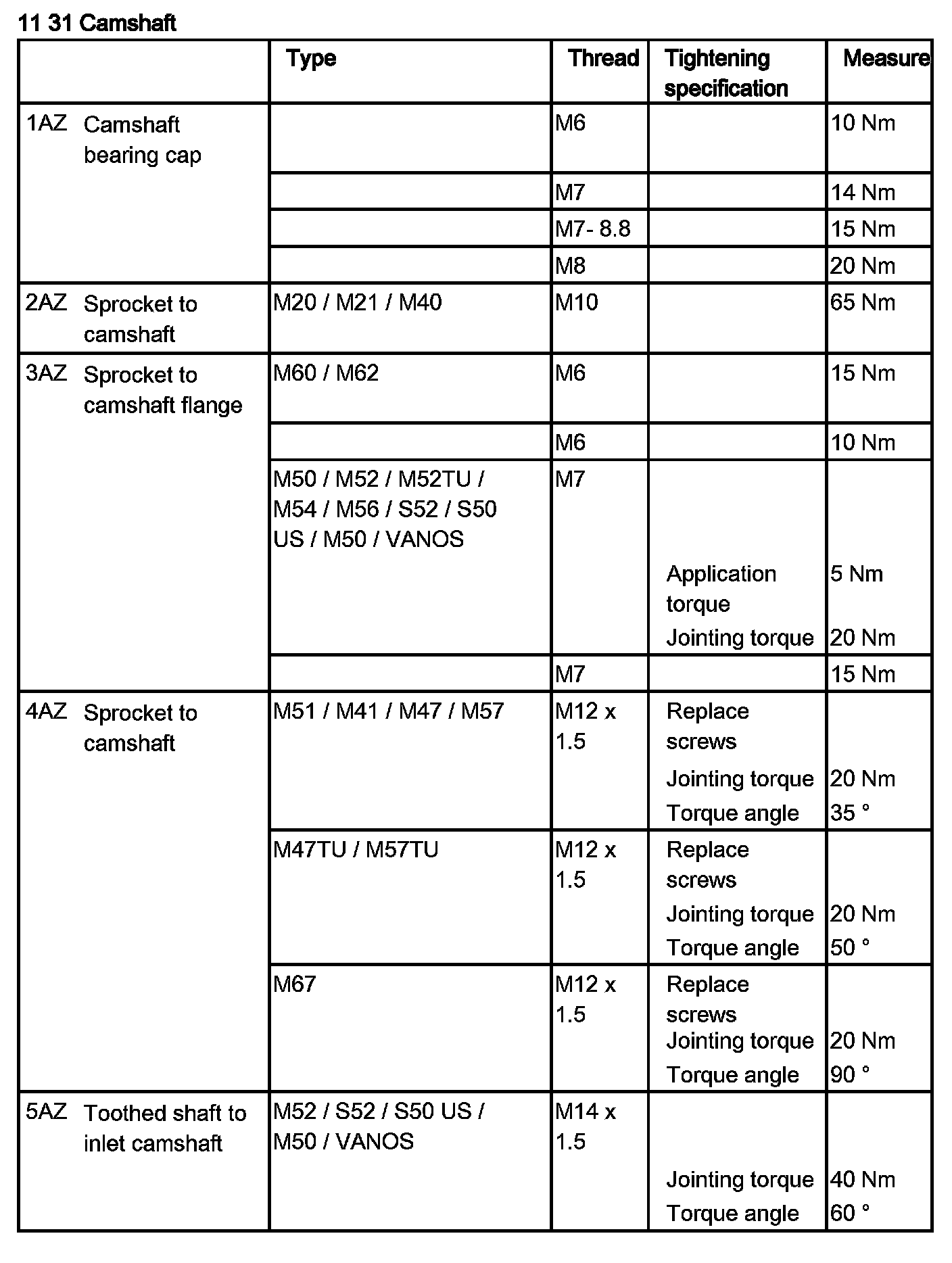

11 31 Camshaft
