Tail Light Bulb: Service and Repair

Replacing Bulb(s) For Left Or Right Rear Light (coupe, Convertible)


WARNING: Follow instructions for handling light bulbs (exterior lights).


Remove socket housing for rear light.

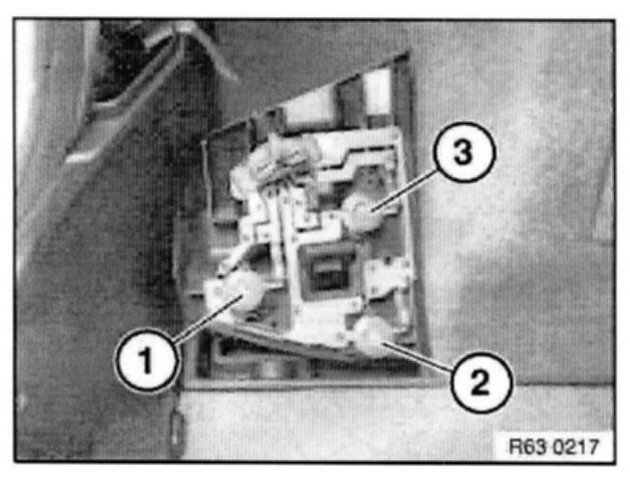

In side section:
Twist defective light bulb and pull out to remove.


NOTE:
1. Turn indicator
2. Tail/brake light
3. Tail light

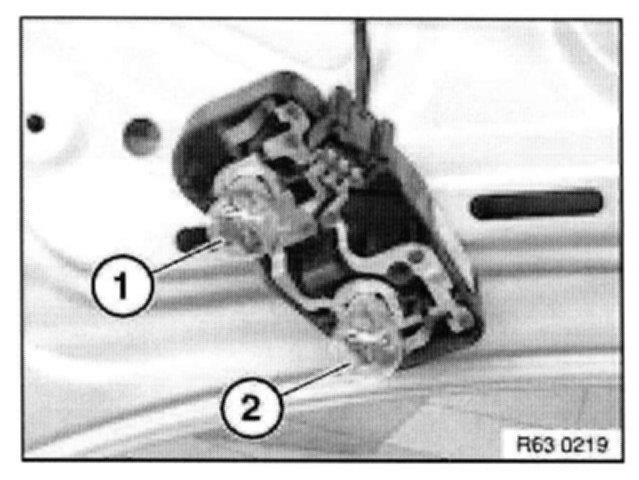

In rear lid:
Twist defective light bulb and pull out to remove.


NOTE:
1. Reversing light
2. Left side: if necessary rear fog light
Right side: Not used


All:

Installation Note: Note type of bulb.
