Transmission Management SMG (SMG Sequential Manual Transmission)
>>
Selector Lever
>>
Selector Lever (As of 09/02 Up to 03/03)
Selector Lever (As of 09/02 Up to 03/03)

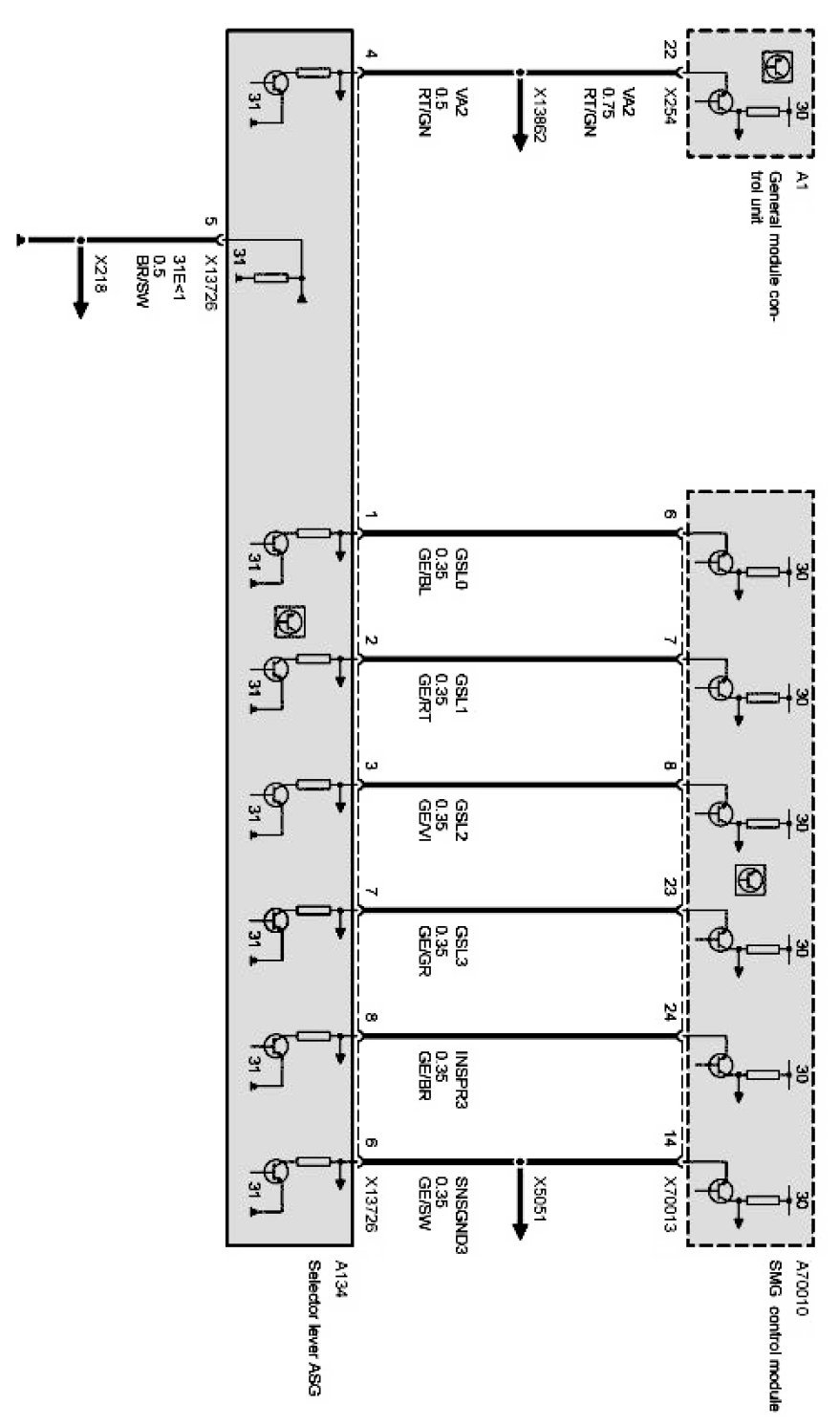

Selector Lever:
