Home >> BMW >> 2003 >> M3 Convertible (E46) L6-3.2L (S54) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Body >> Locking and Security Functions >> Sunroof (Saloon or Coupe or Touring or Compact)

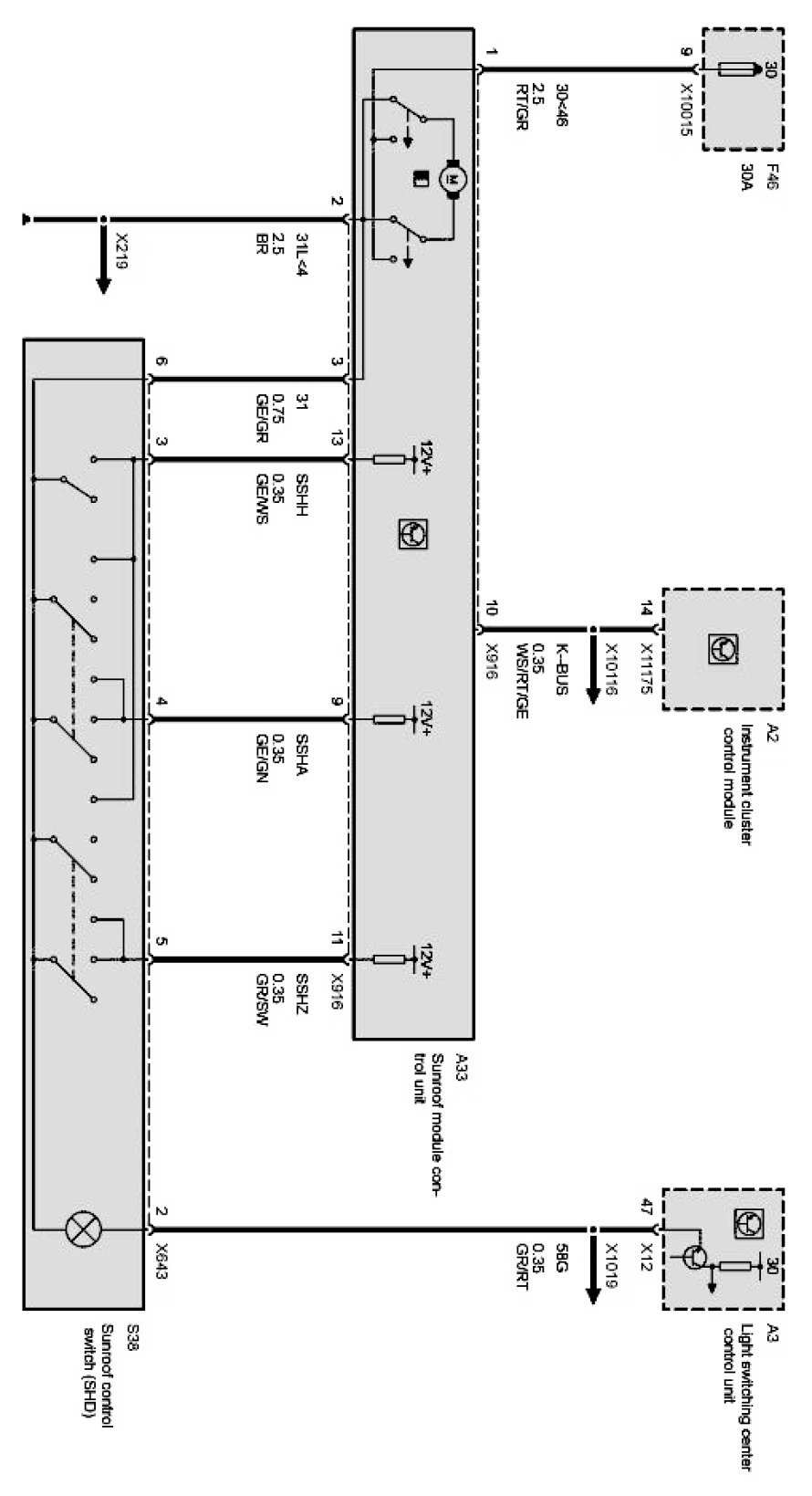

Sunroof (Saloon or Coupe or Touring or Compact)

Slide/tilt sunroof:
