S5D 320Z Transmission

Replacing Output Flange Radial Seal

Note: After completion of work, check transmission oil level.

Caution:
Use only the approved gear oil in this manual transmission.
Failure to comply with this requirement will result in serious damage to the transmission.

Unflange propeller shaft from transmission and tie up to one side.

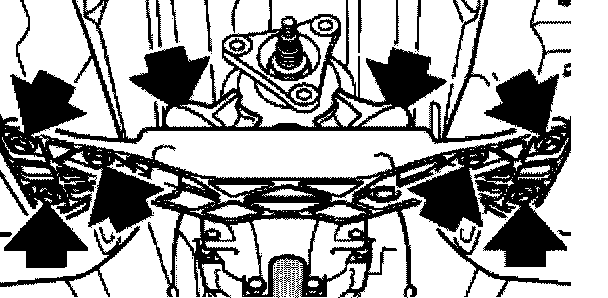

Support transmission with a workshop hoist. Unfasten screws and remove cross-member.

Installation:

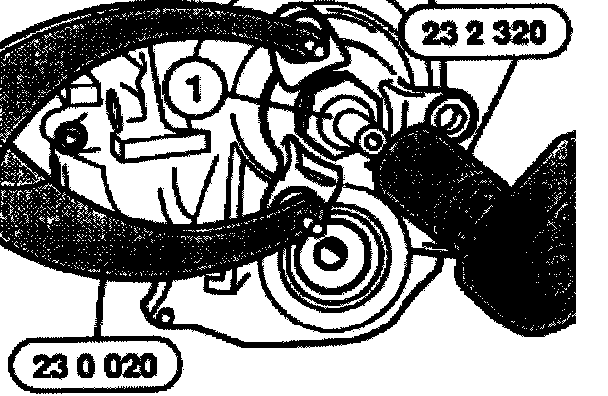

Brace output flange with special tool 23 0 020. Release collar nut (1) with special tool 23 2 320.

Installation:
Install collar nut (1) with screw retaining compound.

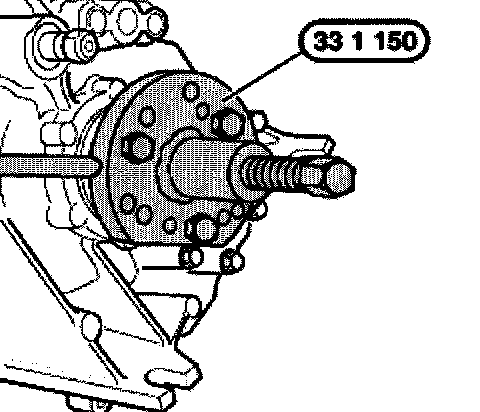

Detach output flange with special tool 33 1 150 from output shaft.

Installation:
Heat output flange to approximately 80°C and push onto output shaft.

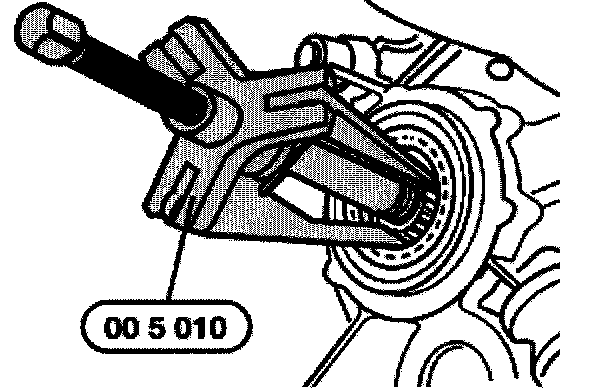

Remove radial seal with special tool 00 5 010.





Coat sealing lips of new radial seal (3) with transmission oil.

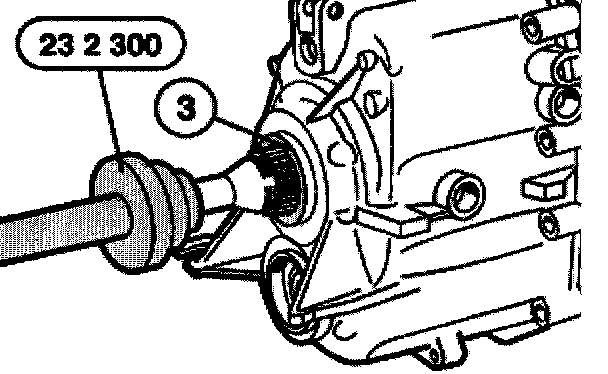

Drive radial seal (3) home flush with special tool 23 2 300.

Note: To drive in: use a plastic hammer.
