Front Fog Lights/Rear Fog Lights ((Touring or Coupe or Convertible) W/O DME Motor Electronics MSS54 09/01 Up to 03/03)

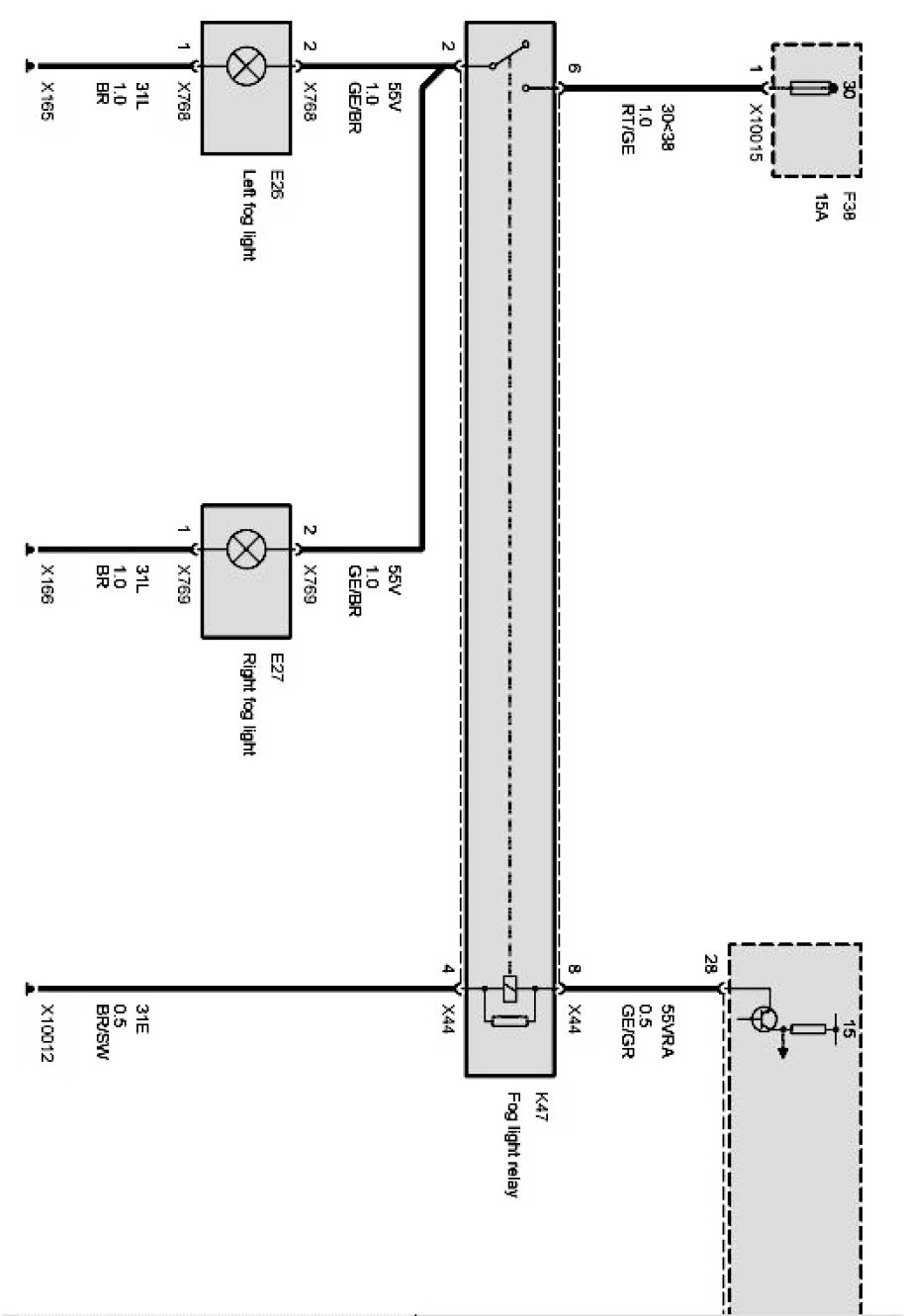

Front fog lights/rear fog lights Part 1:

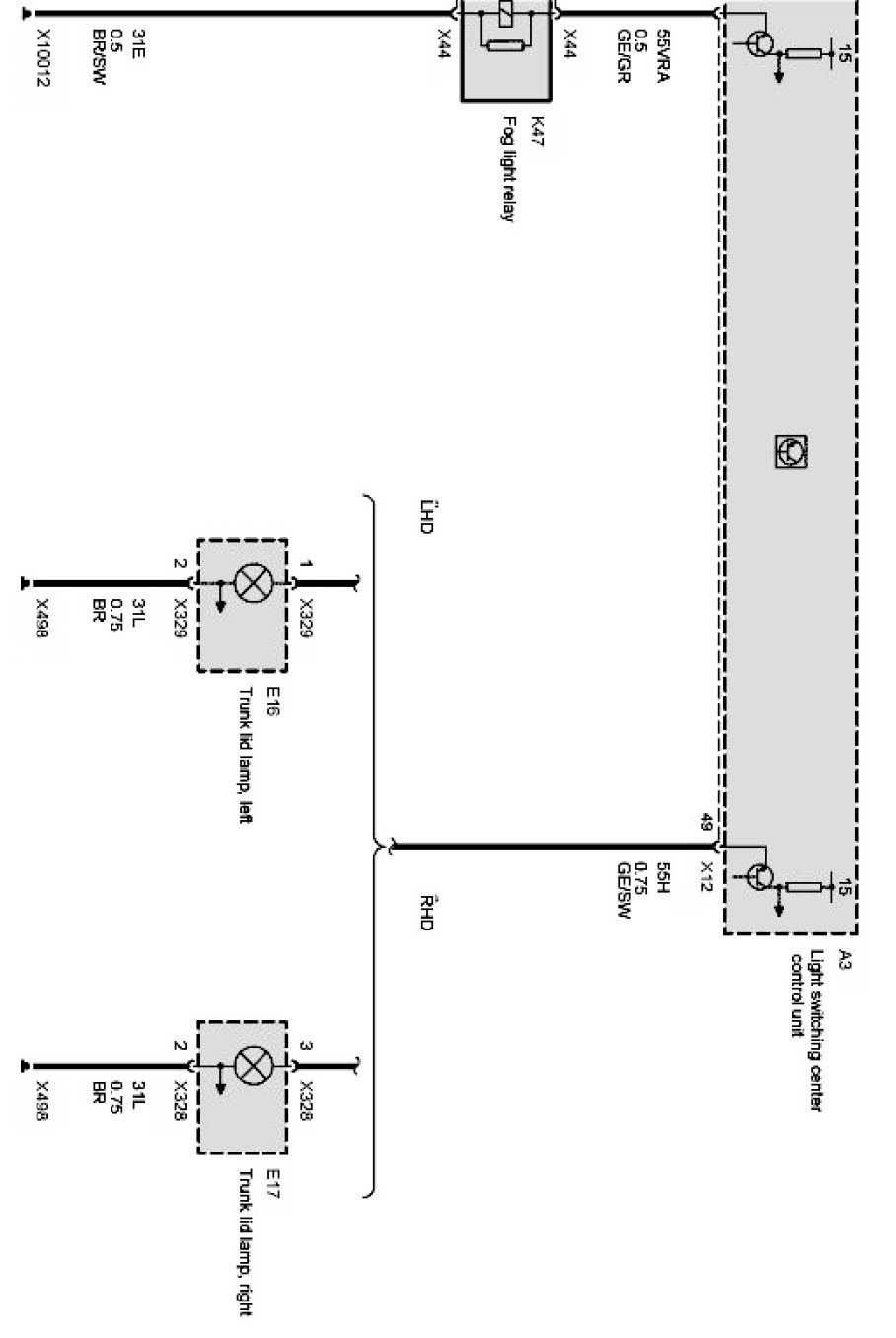

Front fog lights/rear fog lights Part 2:
