FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
BMW
>>
2003
>>
330Ci Convertible (E46) L6-3.0L (M54)
>>
Repair and Diagnosis
>>
Diagrams
>>

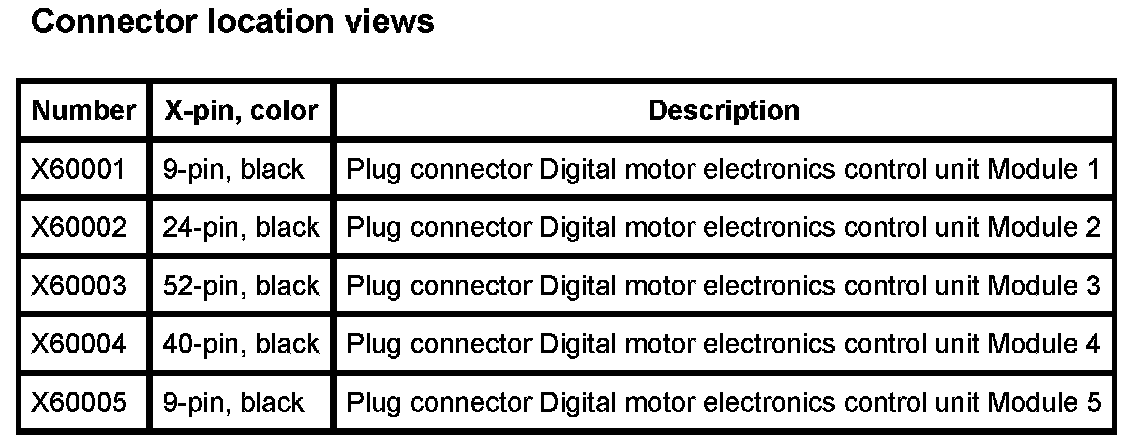

Connector Views
>>
Engine Control Module
>>
A6000 Digital Motor Electronics Control Unit (DME Digital Motor Electronics MS45)
>>
A6000 Digital Motor Electronics Control Unit (From 09/02 Up to 03/03)
A6000 Digital Motor Electronics Control Unit (From 09/02 Up to 03/03)
A6000 Digital Motor Electronics Control Unit (DME MS45 As of 09/02 Up to 03/03):
