Removing and Installing/Replacing Front Muffler (M54)

Removing And Installing/replacing Front Muffler (M54)

Special tools required:
^ 00 2 210

Warning! Scalding hazard!
These tasks should only be carried out on an exhaust system that has cooled down!

Note: Illustration shows exhaust system removed.





Determining cutting line:

Carry over pipe length of new front muffler to installed front muffler (1).
Marking cutting line.

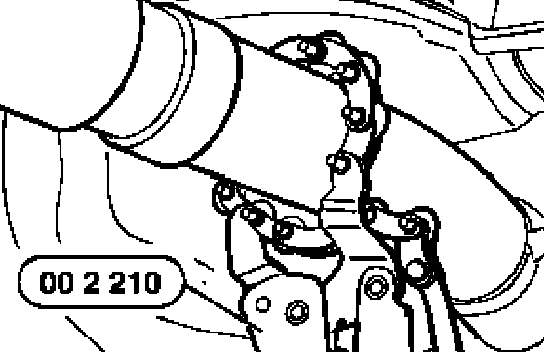

Cut exhaust pipes with special tool 00 2 210 at marked points and deburr.

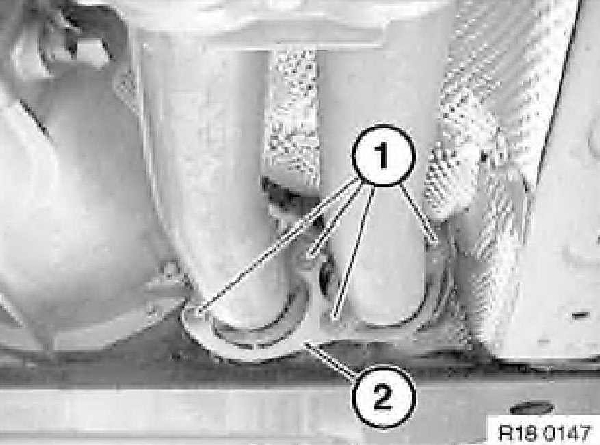

Release nuts (1) and remove connecting plate (2).

Installation:
Replace self-locking nuts.
Coat thread with copper paste, refer to BMW Parts Service.





Installation:

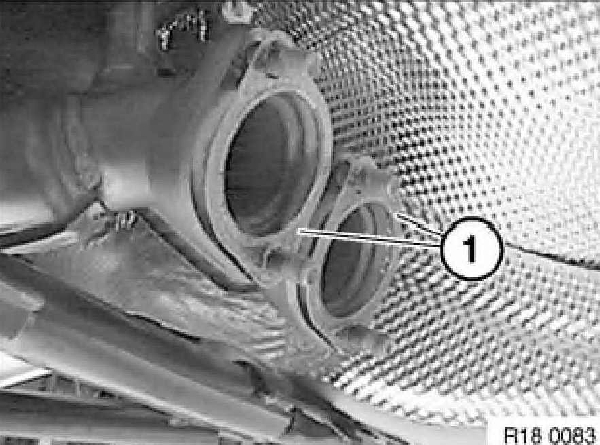

Replace both seals (1).





Installation:

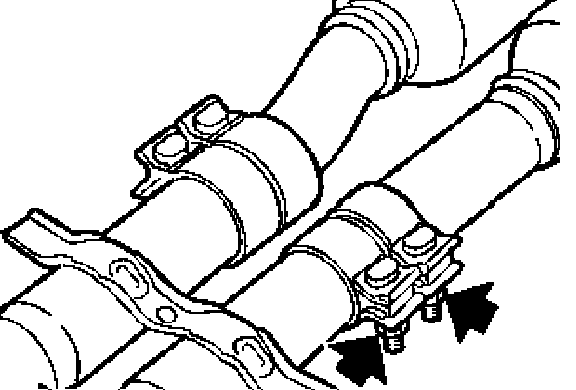

Connect new front muffler and rear muffler by means of clamping sleeves.
Cutting point is in middle of clamping sleeve.
Align exhaust system and clamping sleeves so that there is sufficient distance to the adjoining components.
