Coolant Line/Hose: Service and Repair

Instructions For Disassembly/Assembly Of Coolant Hose Fast Release Couplings

Disassembly of fast-release coupling

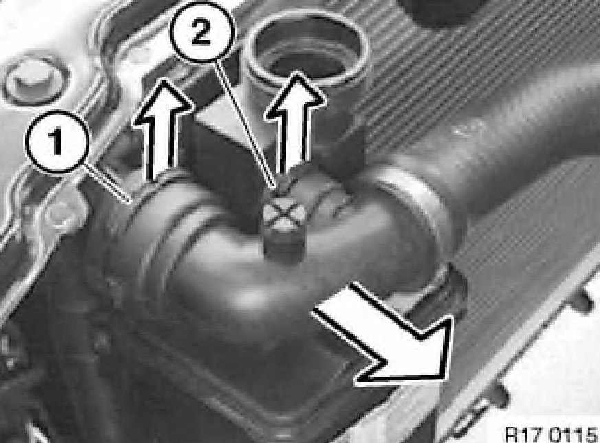

Withdraw lock (1/2), disconnect hose.





Installation:

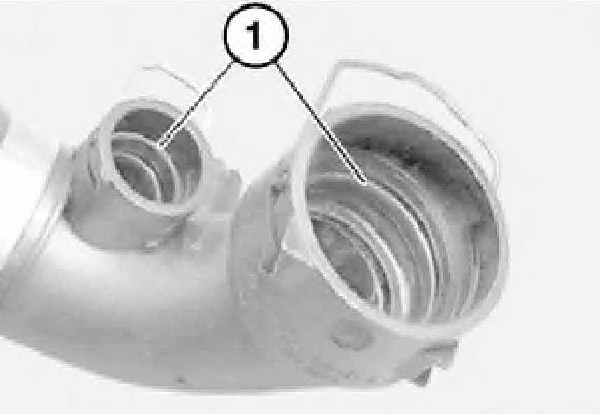

Check O-rings (1).
Do not coat O-rings (1) with antiseize agent.

Assembly of fast-release coupling





Press in lock (1) before installing fast-release coupling.

Push on hose.

Fast-release coupling must audibly snap into place.
