Replace Input Clutch "F"

Replace Input Clutch "F"





Disassemble and assemble/replace planetary gear set 111.

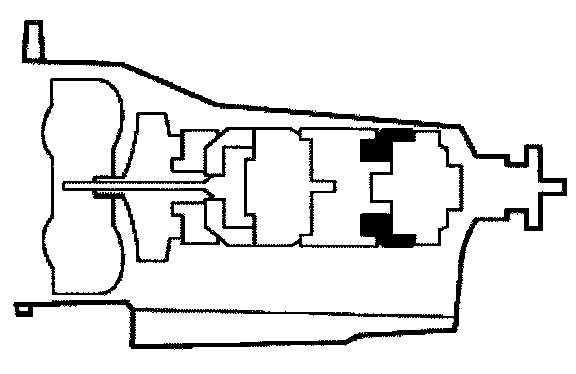

Refer to 24 22 637 Arrangement of input clutch "F"





Lift off thrust bearing.

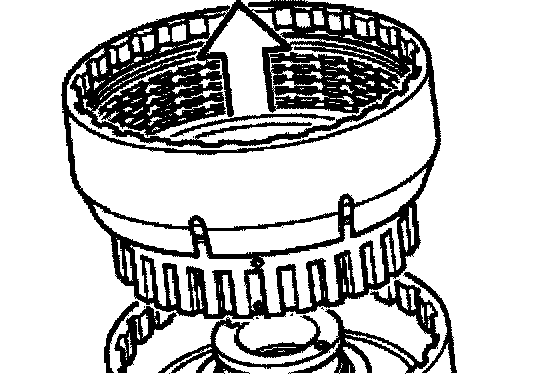

Lift off input clutch "F".





Installation:
Insert input clutch "F" in brake clutch "D/G" and move gently to and fro until all discs locate in one another.

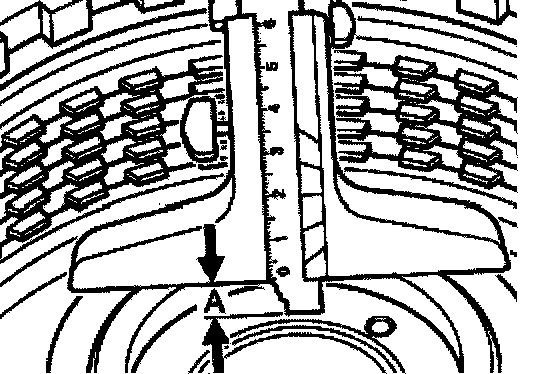

All discs are in mesh when dimension (A) is approximately 7.5 mm.
