S5D 200G/250G Transmission

Replacing Radial Seal On Selector Shaft (S5D 200G/250G)





Unflange propeller shaft from transmission and tie up to one side.
Refer to 26 11 000

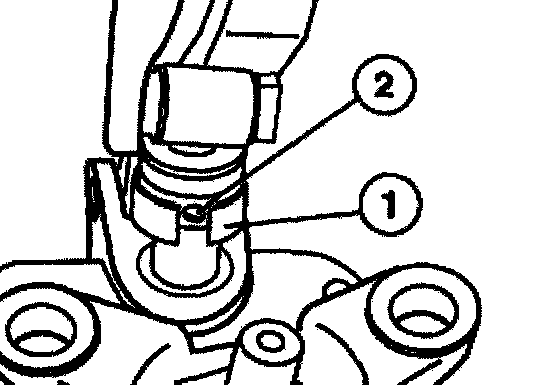

Push back locking sleeve (1) and drive out cylindrical pin (2).

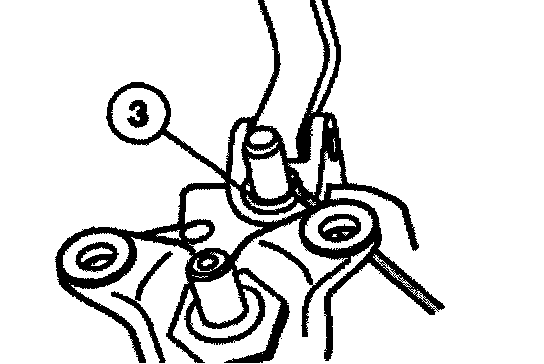

Pry out radial sealing ring (3) with a narrow screwdriver.





Lubricate sealing lip of radial seal ring with oil.

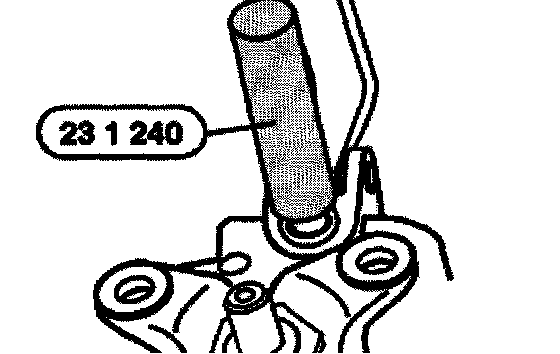

Drive in radial seal flush with special tool 23 1 240.

Check oil level, correcting if necessary.
