Replacing Grooved Ball Bearing In Center Mount

Replacing Grooved Ball Bearing In Center Mount Of Propeller Shaft





Remove center mount.
Refer to 26 12 001

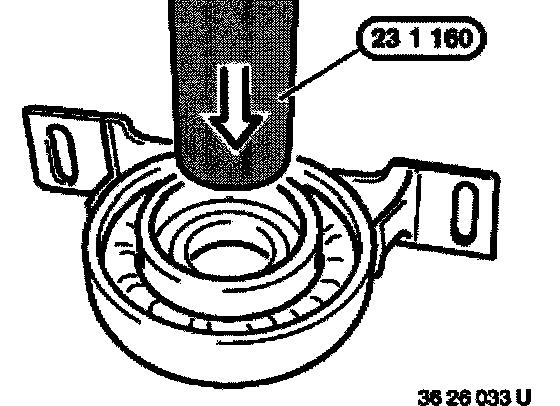

Press out grooved ball bearing with Special Tool 23 1 160.





Always coat center mount in area of ball bearing with Circling
Refer to BMW Parts Service

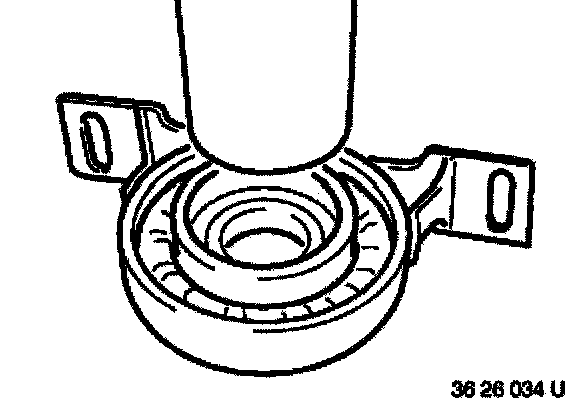

Press in ball bearing as far as stop using a suitable sleeve.
