Remove valve body.

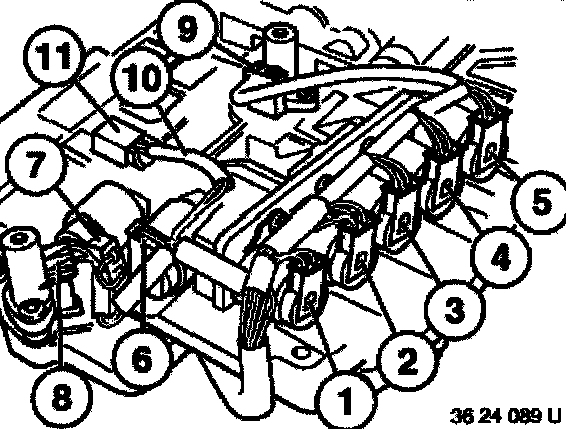

Pull plugs off of solenoids (1 thru 6) and pressure regulator (7). Pull plugs (8 and 9) off of pulse senders.

Note: Temperature sensor (10) is integrated in the wire harness and must be inserted into holder (11).





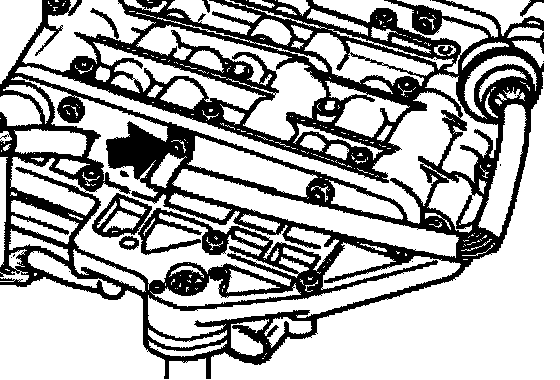

Unscrew holder on valve body. Take off wire harness.
