Replacing Handle For Selector Lever

Replacing Handle For Selector Lever

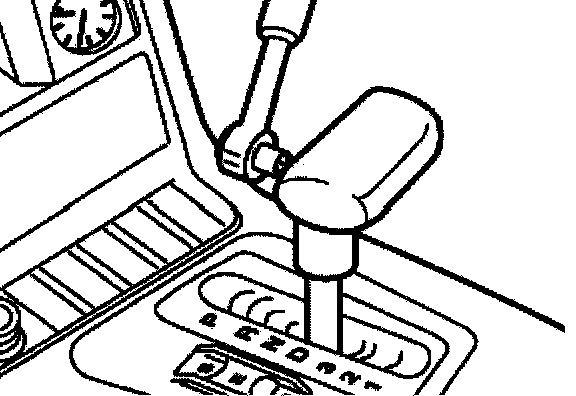

Unscrew cheese-head screw (3 mm hexagon socket).

Pull off handle with pull rod.

Installation:
For tightening torque, refer to Technical Data





Disconnect pull rod (button not pressed). Engage pin (1) of button in bore (2) of pull rod.
