Removing And Installing Or Replacing Selector Lever

Remove Or Replacing Selector Lever





Remove mounting block.
Refer to 25 16 050

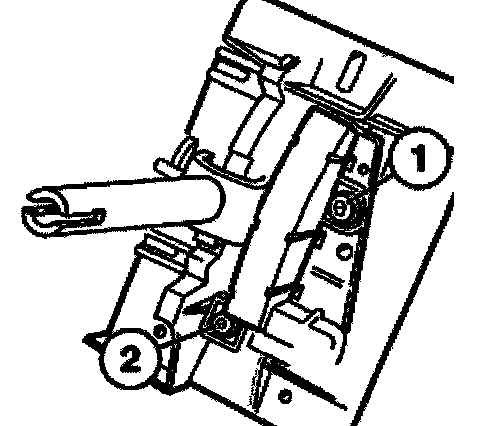

Remove transmission switch after unscrewing screws (1 and 2).

Installation:
Screws are micro-encapsulated and must be replaced after each removal.
For tightening torque, refer to Technical Data.

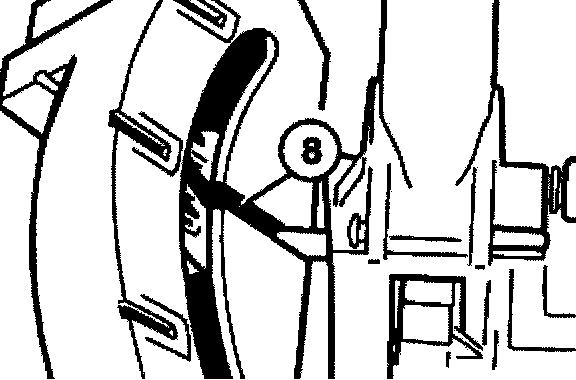

Move selector lever until transmission switch can be taken off drive pin through slot (8).

Installation:

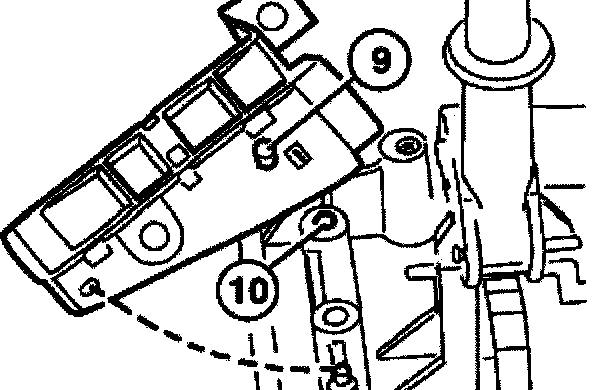

Bead (9) on transmission switch must engage in bore (10).

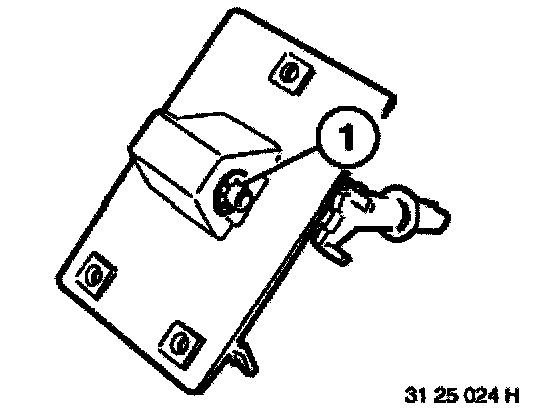

Pry off retainer (1).

Installation:
Replace retainer (1).

Drive out shaft pin.

Installation:
Lubricate bearing surfaces with Kluber Polylub GLY 801.
Refer to BMW Parts Service.
