Replacing Radial Seal For Manual Shift Valve Shaft (A5S 31OZ)

Replacing Radial Seal For Manual Shift Valve Shaft (A5S 310Z)





Loosen nut (1).

Caution: Always counterhold bolt with special tool 24 5 220 to avoid deformation of the cable.

Note: Special tool 24 5 220 can only be fitted in position "P".





Unscrew cable from holder.
Pull out cable.

Installation:
Adjust selector lever.
Refer to 24 00 007

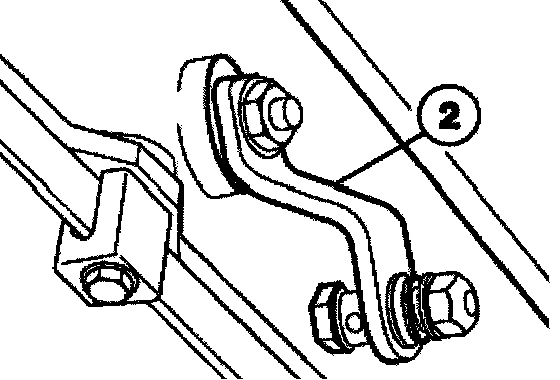

Unscrew lever (2).






Remove radial seal with special tool 24 5 260.

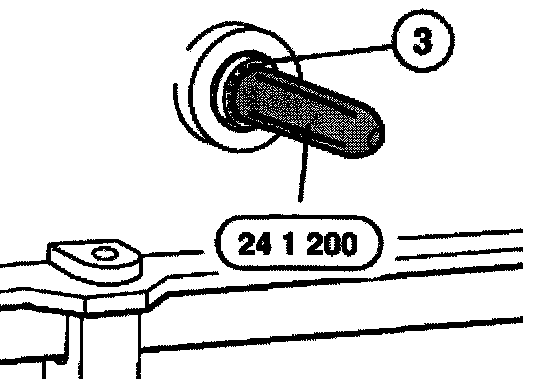

Apply special tool 241 200 on manual shift valve shaft.

Lubricate sealing lip of radial oil seal with oil. Drive in radial oil seal (3) as far as case.

Remove special tool 241 200.





Apply special tool 24 5 230 on the selector lever shaft.

Screw on lever mounting nut (4).

Press radial oil seal (3) in using special tool 24 5 230 with help of nut (4).
