Dismantling and Assembly/Replacing Planetary Gear Sets I and II

Dismantling And Assembly/Replacing Planetary Gear Sets I And II





Replacing input clutch "B"

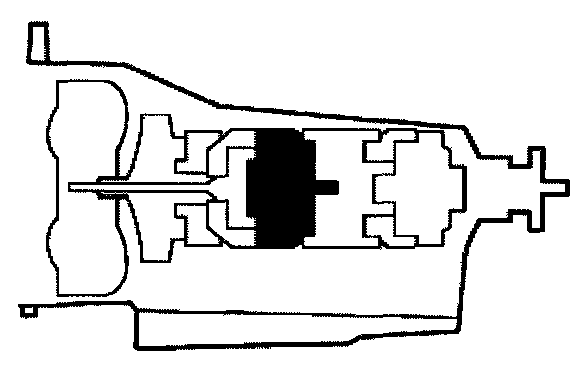

Refer to 24 23 717 Arrangement of planetary gear sets I and II

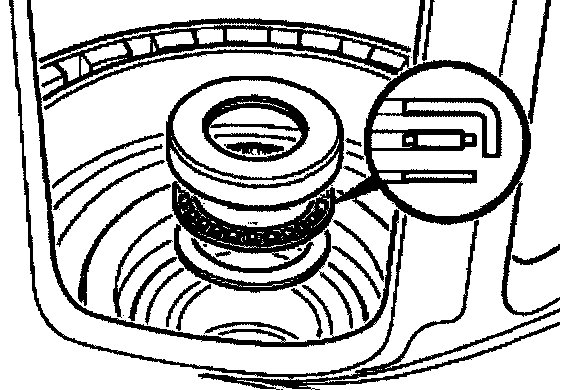

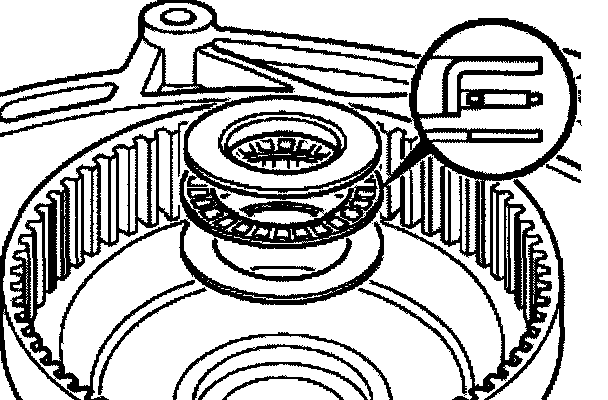

Lift off thrust bearing.

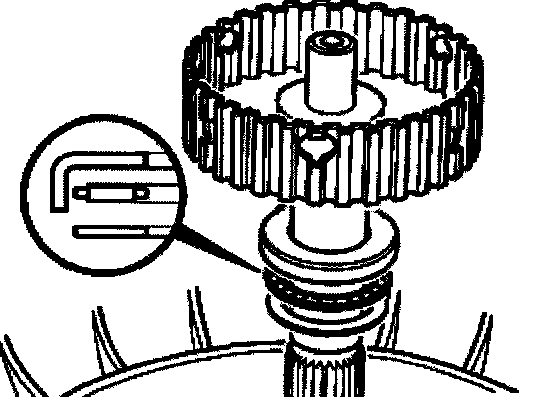

Lift out intermediate shaft and axial bearing.

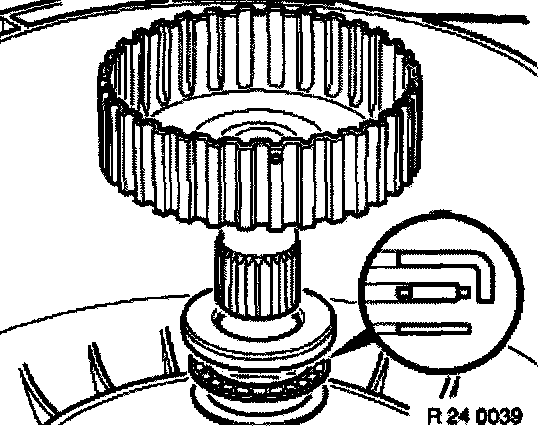

Lift out sun shaft and axial bearing.

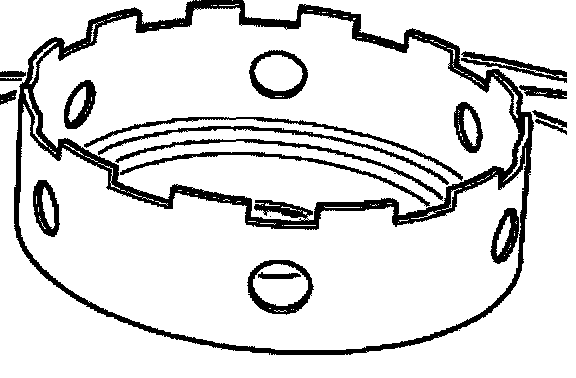

Lift out pot.

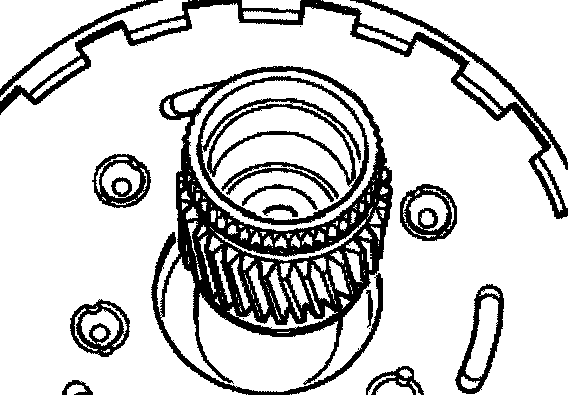

Lift out sun gear.

Installation:
Check installed direction.

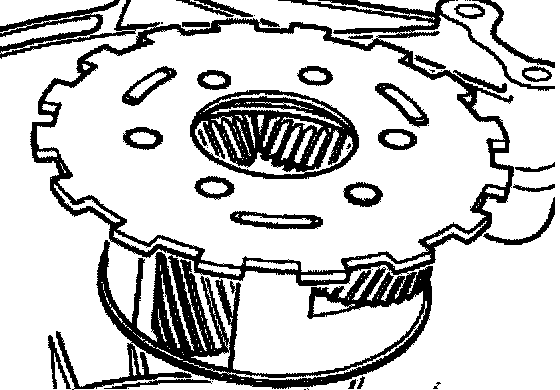

Lift out planet carriers 1 and 11.





Remove thrust bearing and shaft with hollow gear.

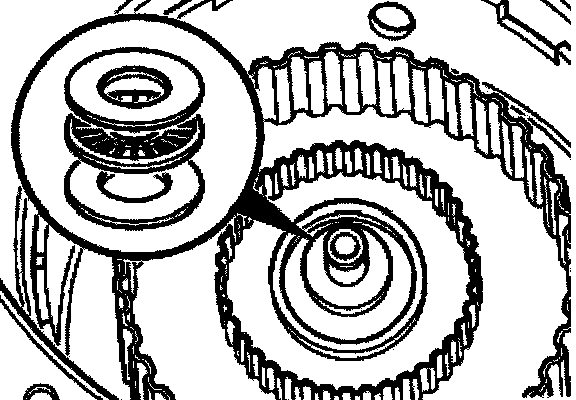

Remove thrust bearing.

Installation:
Note installation position of angled disc.

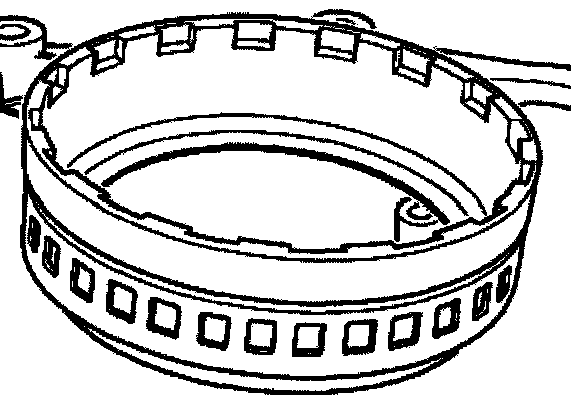

Remove bowl.
