Replacing Pressure Regulator For Valve Body

Replacing Pressure Regulator For Valve Body (A5S 310Z)

Remove valve body.

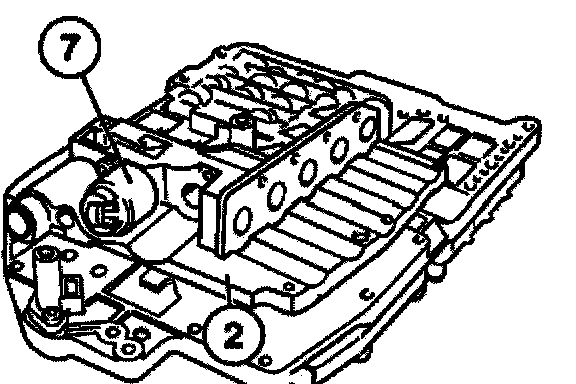

Pressure regulator (7) cannot be replaced separately, since the modulation pressure has to be adjusted.

Modulation pressure can only be adjusted by the manufacturers.

Replace pressure regulator (7) only in conjunction with valve housing (2).





Remove solenoid valve (1 thru. 6).

Remove valve housing from valve body. Loosen screws (3 thru. 13).

Caution: Check length of screws.

Installation:
Tightening torque, M6 = 5 Nm.

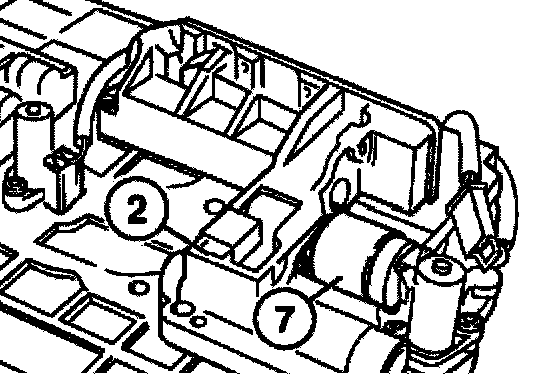

Take valve housing (2) with pressure regulator (7) off of valve body.
